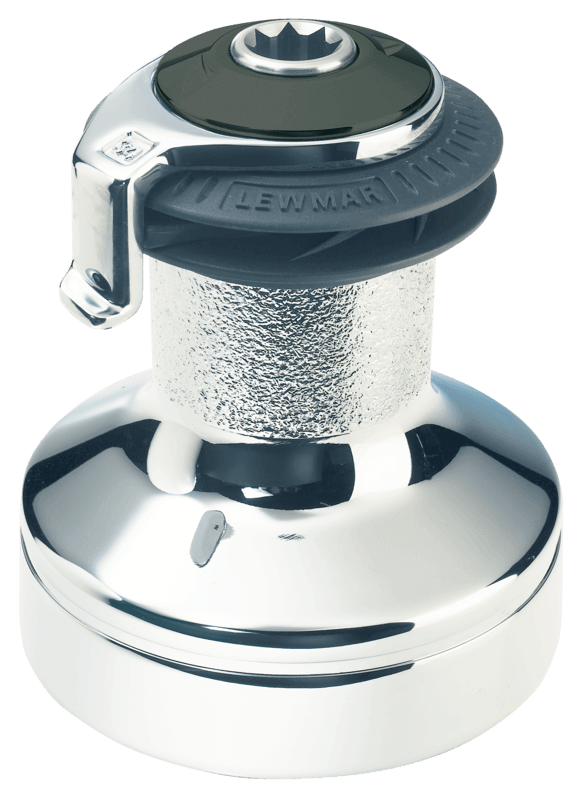

Specifications for Lewmar 68 3-Speed Self-Tailing Chromed Bronze Ocean Winch
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 20 |
| Cabo recomendado - Ø mín (mm) | 10 |
| Boat | |
| Estilo | Self-Tailing |
| Load | |
| SWL (kg) | 6614 |
| Dimensions | |
| B (mm) | 294 |
| D (mm) | 141 |
| H (mm) | 348 |
| L (mm) | 186.4 |
| Ø de base (mm) | 294 |
| Ø del tambor (mm) | 141 |
| Altura (mm) | 348 |
| Altura de entrada del cabo (mm) | 186.4 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 2.8 |
| Relación de engranajes 2 (X : 1) | 8 |
| Relación de engranajes 3 (X : 1) | 19.3 |
| Velocidades (manual) | 3-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 390 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 137 |
| Recogida de cabo por vuelta - 3ª velocidad (mm) | 57 |
| Relación de potencia 1 (X : 1) | 9.9 |
| Relación de potencia 2 (X : 1) | 29.1 |
| Relación de potencia 3 (X : 1) | 69.3 |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Tamaño | 68 |
| Weight | |
| Peso (g) | 28800 |
| Garantía (años) | 3 |
Lewmar's Self-Tailing Ocean Chromed Bronze Winch
Lewmar's Ocean winch range is the most popular winch ever made. Its styling still attracts boat builders looking for a classic look, or boat owners looking to upgrade or replace their existing winches.
Features
Easy Servicing - no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Choice of two finishes - Ocean winches are available in grey alloy and chrome bronze for the cruising sailor
Manual to Electric - Conversion kits are available from size 40 and above
Available in Size 16 to Size 65
Solid construction respected by boat builders and sailors for generations
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 20 |
| Cabo recomendado - Ø mín (mm) | 10 |
| Boat | |
|---|---|
| Estilo | Self-Tailing |
| Load | |
|---|---|
| SWL (kg) | 6614 |
| Dimensions | |
|---|---|
| B (mm) | 294 |
| D (mm) | 141 |
| H (mm) | 348 |
| L (mm) | 186.4 |
| Ø de base (mm) | 294 |
| Ø del tambor (mm) | 141 |
| Altura (mm) | 348 |
| Altura de entrada del cabo (mm) | 186.4 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 2.8 |
| Relación de engranajes 2 (X : 1) | 8 |
| Relación de engranajes 3 (X : 1) | 19.3 |
| Velocidades (manual) | 3-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 390 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 137 |
| Recogida de cabo por vuelta - 3ª velocidad (mm) | 57 |
| Relación de potencia 1 (X : 1) | 9.9 |
| Relación de potencia 2 (X : 1) | 29.1 |
| Relación de potencia 3 (X : 1) | 69.3 |
| Material | |
|---|---|
| Material | Chromed Bronze |
| Undefined | |
|---|---|
| Tamaño | 68 |
| Weight | |
|---|---|
| Peso (g) | 28800 |
| Garantía (años) | 3 |
