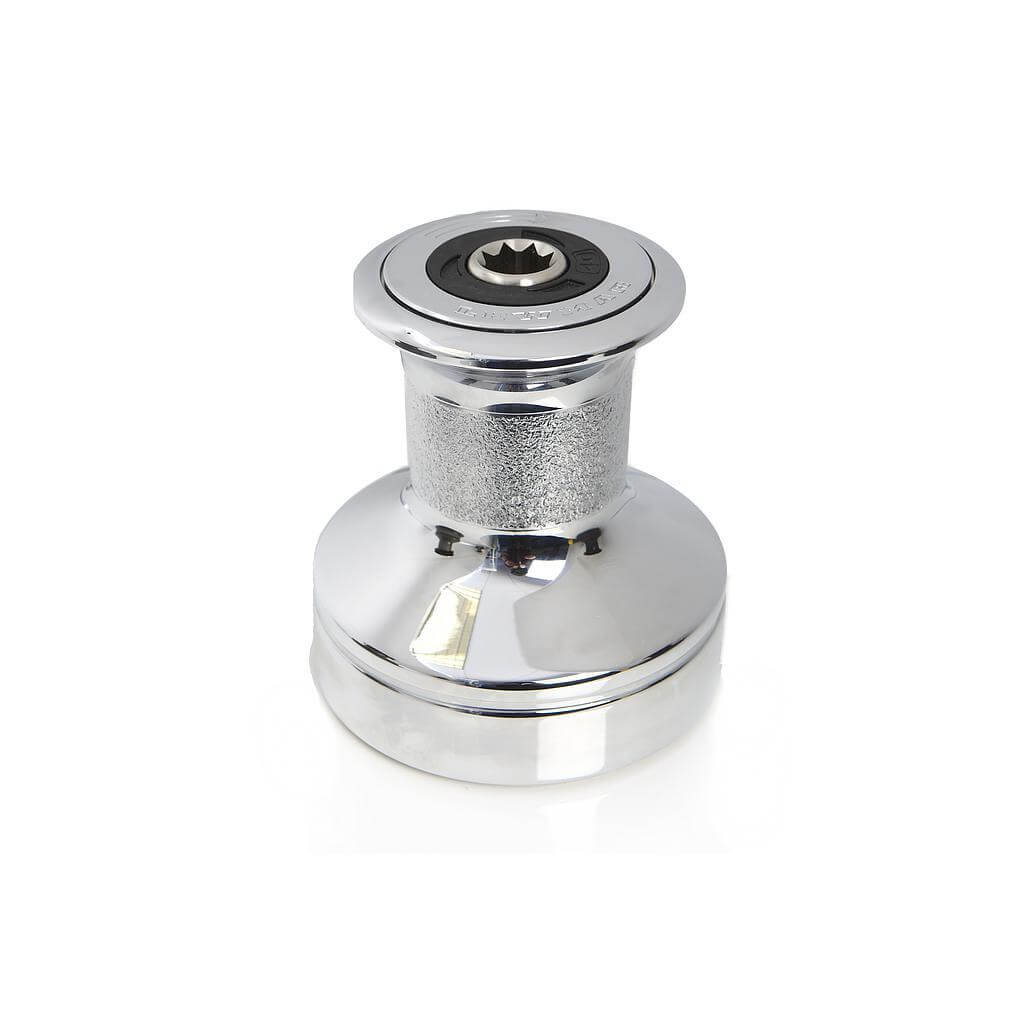

Specifications for Lewmar 16 2-Speed Plain-Top Chromed Bronze EVOⓇ Sport Winch
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 12 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
| Estilo | Plain-Top |
| Load | |
| SWL (kg) | 570 |
| Dimensions | |
| B (mm) | 120 |
| D (mm) | 67 |
| H (mm) | 112 |
| L (mm) | 55 |
| Ø de base (mm) | 120 |
| Ø del tambor (mm) | 67 |
| Altura (mm) | 112 |
| Altura de entrada del cabo (mm) | 55 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 1 |
| Relación de engranajes 2 (X : 1) | 2 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 352 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 176 |
| Relación de potencia 1 (X : 1) | 7.9 |
| Relación de potencia 2 (X : 1) | 16.1 |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Tamaño | 16 |
| Weight | |
| Peso (g) | 3200 |
| Garantía (años) | 7 |
|
Lewmar - How to Service an EVO Winch
A step-by-stepy guide to serviving the EVO winch by Lewmar
|
|
|
Manual-Winch Part Manual - Volume 10.pdf
Manual - Volume 10
|
|
|
|
Manual-Winch Service Manual B2304 iss6-2.pdf
B2304 - Issue 6
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
Lewmar's Plain-Top EVO® Sport Chromed Bronze Winch
The EVO® Sport complements the EVO® Winch Range. Best suited for sport boats requiring constant trimming, and where weight consideration is a premium. The EVO® Sport is also suitable as a mast mounted winch.
Features
Architecture based on self tailing EVO® Winch
Easy Servicing– no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Plain-Top to Self-Tailing - Size 30 and 40 can be converted into an EVO® Self tailing winch retrospectively
Manual to Electric - Size 40 can be converted to electric
Choice of finishes: Black alloy or Chrome bronze
Available in size 6 to size 40
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 12 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
|---|---|
| Estilo | Plain-Top |
| Load | |
|---|---|
| SWL (kg) | 570 |
| Dimensions | |
|---|---|
| B (mm) | 120 |
| D (mm) | 67 |
| H (mm) | 112 |
| L (mm) | 55 |
| Ø de base (mm) | 120 |
| Ø del tambor (mm) | 67 |
| Altura (mm) | 112 |
| Altura de entrada del cabo (mm) | 55 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 1 |
| Relación de engranajes 2 (X : 1) | 2 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 352 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 176 |
| Relación de potencia 1 (X : 1) | 7.9 |
| Relación de potencia 2 (X : 1) | 16.1 |
| Material | |
|---|---|
| Material | Chromed Bronze |
| Undefined | |
|---|---|
| Tamaño | 16 |
| Weight | |
|---|---|
| Peso (g) | 3200 |
| Garantía (años) | 7 |
