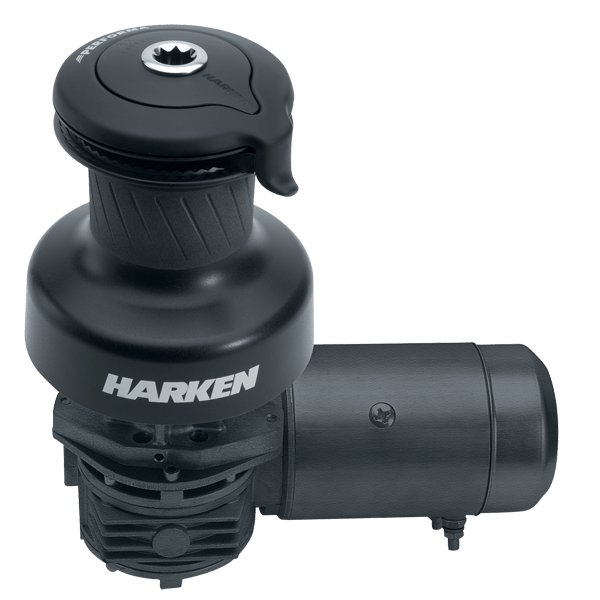

Harken 46 2-Speed Electric (Horizontal) 24V Aluminium Performa Winch (2-Speed Manual)
Specifications for Harken 46 2-Speed Electric (Horizontal) 24V Aluminium Performa Winch (2-Speed Manual)
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Electrics | |
| Tensión (V) | 24 |
| Potencia (W) | 900 |
| Velocidad (motor) | 2-Speed |
| Boat | |
| Estilo | Horizontal |
| Dimensions | |
| A (mm) | 101 |
| B (mm) | 184 |
| C (mm) | 201 |
| D (mm) | 90 |
| E (mm) | 43 |
| F (mm) | 155 |
| G (mm) | 227 |
| Ø de base (mm) | 184 |
| Ø del tambor (mm) | 101 |
| Altura (mm) | 201 |
| Altura de entrada del cabo (mm) | 90 |
| Profundidad del motor (mm) | 155 |
| Longitud del motor (mm) | 227 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 2.3 |
| Relación de engranajes 2 (X : 1) | 9.17 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 138 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 35 |
| Velocidad de línea - 1ª velocidad (m/min) | 33.5 |
| Velocidad de línea - 2ª velocidad (m/min) | 8.4 |
| Relación de potencia 1 (X : 1) | 11.7 |
| Relación de potencia 2 (X : 1) | 46.5 |
| Carga de tiro - Máx (kg) | 1300 |
| Detalles de la falda | Integrated |
| Material | |
| Material | Aluminium |
| Undefined | |
| Espesor de cubierta Máx (mm) | 43 |
| Tamaño | 46 |
| Compatibility | |
| Montaje* | Right-Hand Mount or Left-Hand Mount |
| Weight | |
| Peso (g) | 15900 |
| Garantía (años) | 2 |
Electric Self-Tailing Performa Aluminium Winch
Electric winches allow crew to trim any size sail with the push of a button. Choices include 1, 2-, and 3-speeds, in self-tailing, shaped or sandblasted grips, standard or wide drums. Available in aluminum, chrome, aluminum/stainless, stainless steel, or bronze, in 12- or 24-volt. Energy-efficient motors accomplish more work per unit of electricity consumed. Motors attach to central drive shaft and drive through winch gears for mechanical advantage.
Harken Performa winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fiber racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes.
Aluminum winches are designed for sailors who want lightweight, extremely strong winches with plenty of power.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Electrics | |
|---|---|
| Tensión (V) | 24 |
| Potencia (W) | 900 |
| Velocidad (motor) | 2-Speed |
| Boat | |
|---|---|
| Estilo | Horizontal |
| Dimensions | |
|---|---|
| A (mm) | 101 |
| B (mm) | 184 |
| C (mm) | 201 |
| D (mm) | 90 |
| E (mm) | 43 |
| F (mm) | 155 |
| G (mm) | 227 |
| Ø de base (mm) | 184 |
| Ø del tambor (mm) | 101 |
| Altura (mm) | 201 |
| Altura de entrada del cabo (mm) | 90 |
| Profundidad del motor (mm) | 155 |
| Longitud del motor (mm) | 227 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 2.3 |
| Relación de engranajes 2 (X : 1) | 9.17 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 138 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 35 |
| Velocidad de línea - 1ª velocidad (m/min) | 33.5 |
| Velocidad de línea - 2ª velocidad (m/min) | 8.4 |
| Relación de potencia 1 (X : 1) | 11.7 |
| Relación de potencia 2 (X : 1) | 46.5 |
| Carga de tiro - Máx (kg) | 1300 |
| Detalles de la falda | Integrated |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Espesor de cubierta Máx (mm) | 43 |
| Tamaño | 46 |
| Compatibility | |
|---|---|
| Montaje* | Right-Hand Mount o Left-Hand Mount |
| Weight | |
|---|---|
| Peso (g) | 15900 |
| Garantía (años) | 2 |
