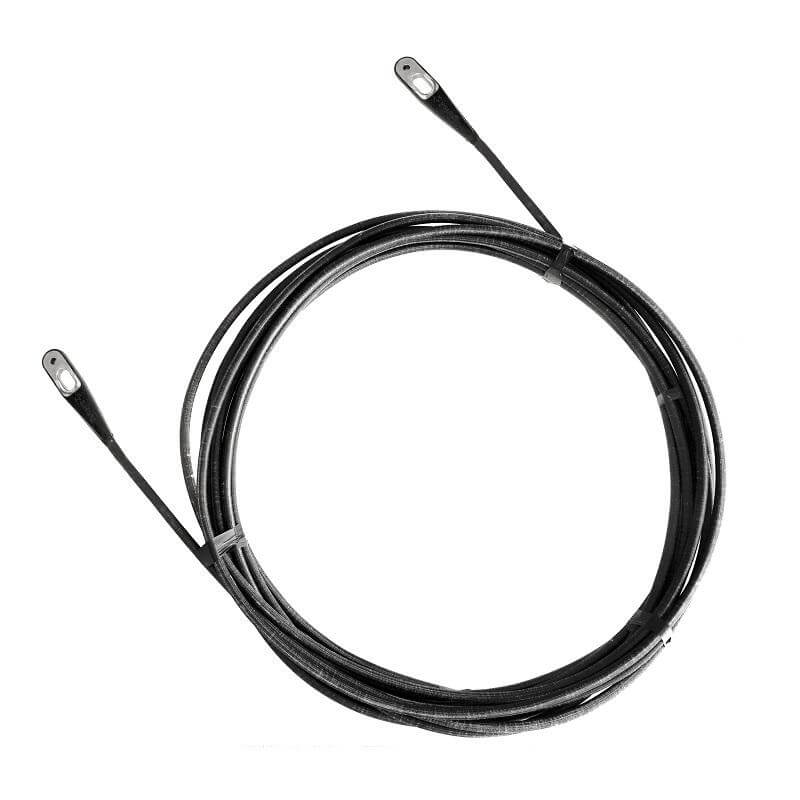

Armare SK99 Bottom-Up Torsional cable - L : 21.0m, SWL : 3.8t

https://www.upffront.com/web/image/product.template/4368/image_1920?unique=3fe6e8a

3.213,42 3213.42 USD 3.382,55

2.872,41 €

5% Descuento

No está disponible para venta

Días
:
Horas
:
Mins
:
Secs
  • Core material
  • Brand
  • SWL (kg)
  • NBL (kg)
  • Cable length (mm)
  • Cable Ø (mm)
  • Fitting pin Ø (mm)
  • Fitting width (mm)
  • Dash equivalent
  • EA (MN)
  • Fitting reference
  • Cable weight (g)

Esta combinación no existe.

Product Image

Armare SK99 Bottom-Up Torsional cable - L : 21.0m, SWL : 3.8t

3.382,55 3.213,42
5% Off
SKU:
N/A
Brand: Armare
Shipping Info

Devolución de dinero en 30 días

 14-días para devoluciones

 Envío rápido disponible

Compartir :

The Armare range of standard PBO, SK99 and K49 torsional cables have been specifically designed for either bottom-up or Top-down applications. Top-down cables have larger diameters relative to the same length bottom-up cable to handle the additional torsional loads. The SK99 core is increasingly becoming the go-to core fibre for both top-down and bottom-up furling. SK99 gets very close to PBO in terms of performance e.g. weight and diameter, but Dyneema® offers increased durability and complete reliability. Armare’s multi-layered, braided covers provide excellent torsional performance plus abrasion resistance and every cable comes with a pinned termination at the upper / lower ends to interface with the swivel / Drum.

Especificaciones

Ropes
Core material DSK99
Boat
Load
SWL (kg) 3800
NBL (kg) 15000
Dimensions
Cable length (mm) 21000
Cable Ø (mm) 16.9
Fitting pin Ø (mm) Max PIN 15
Fitting width (mm) 15.5
Rigging
Dash equivalent 16
EA (MN) 9.3
Compatibility
Fitting reference AT2
Weight
Cable weight (g) 6000
