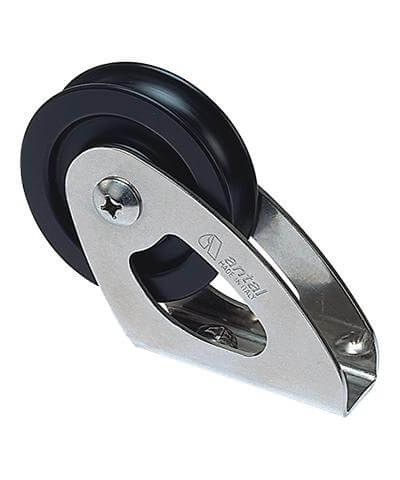

Antal Halyard Blocks are designed for halyards at the base of the mast, keeps the line as close to the deck as possible. The AISI 316 stainless steel base and sides are combined with double side ball bearings.
Mounting screws not included.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 800 |
| Blocks | |
|---|---|
| Sheave material | Plastic |
| Sideplate material | Stainless Steel |
| Ratchet | No |
| Dimensions | |
|---|---|
| A (mm) | 19 |
| Sheave Ø (mm) | 65 |
| Total height (mm) | 18 |
| Total length (mm) | 102 |
| Total width (mm) | 25 |
| Weight | |
|---|---|
| Weight (g) | 170 |
