Antal Mekton Sheave for OPF Block 64 mm

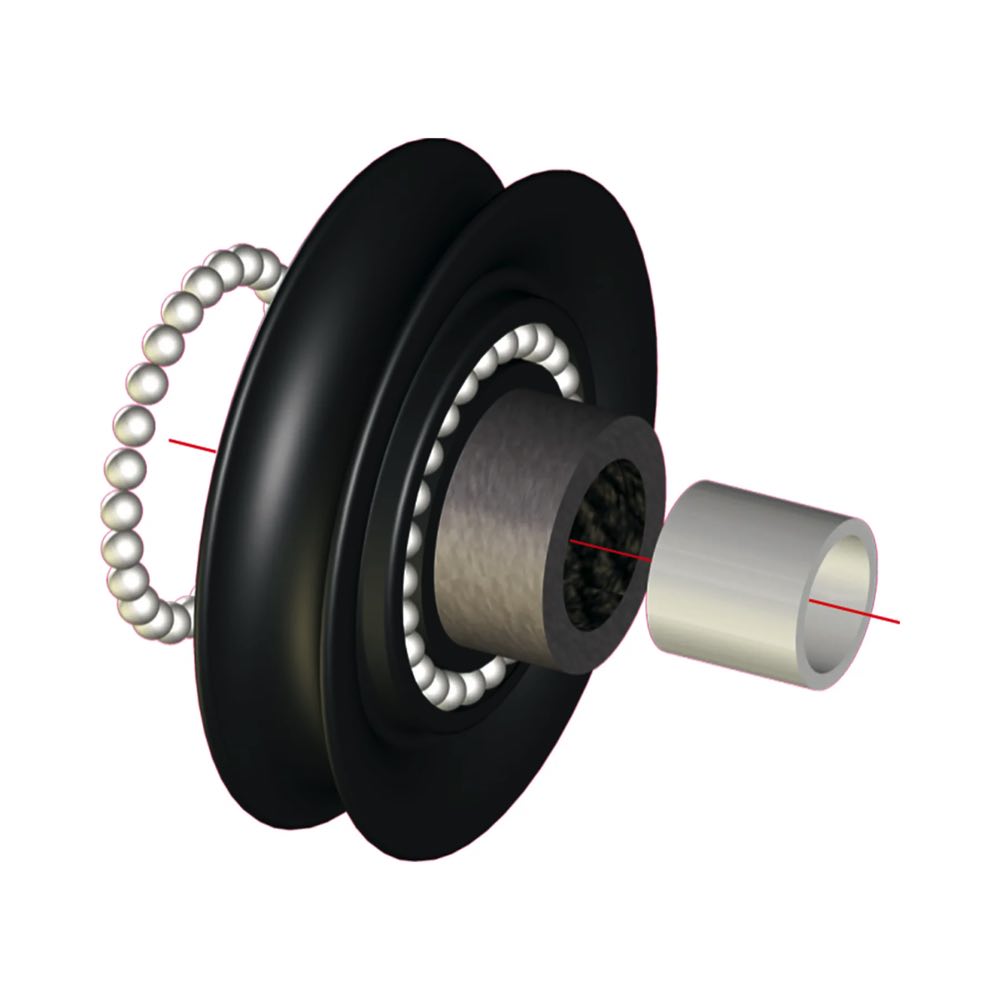

A genuine Antal replacement sheave for the OPF (One-Piece Frame) block range. The 64 mm Mekton (fibre-reinforced resin) sheave runs on side Delrin® ball bearings with a composite fibre radial bearing and a ground stainless-steel hub, delivering smooth, low-friction performance without lubrication. A quick, lightweight refresh for OPF singles, doubles and pad-eye blocks on cruising and performance yachts.
Why it’s a smart upgrade
-
Low friction in a compact package thanks to Delrin® side balls and composite radial bearing
-
Light, tough Mekton resin sheave with stainless hub for long service life
-
Drop-in fit for OPF bodies to restore like-new efficiency
Key specifications
-
Sheave Ø: 64 mm
-
Max rope Ø: 16 mm
-
Safe Working Load (SWL): 3,500 kg
-
Thickness (T): 21 mm
-
Axle/bore Ø (D3): 20 mm
-
Hub Ø (D2): 25 mm
-
Sheave material: Mekton (resin)
-
Bearings: Composite fibre (radial) + Delrin® balls (side)
-
Supplied with: Stainless-steel hub
-
Weight: ~78 g
Typical applications
-
Refurbishing Antal OPF 64 mm single/double blocks and pad-eye variants
-
Compact turning points for mainsheets, genoa sheets, vangs and mast-base organisers (within stated SWL)
Fit & compatibility notes
-
Confirm your block’s sheave Ø (64 mm), axle/bore Ø (20 mm) and thickness (21 mm) before ordering
-
Designed for rope up to 16 mm; not suitable for wire or rod
