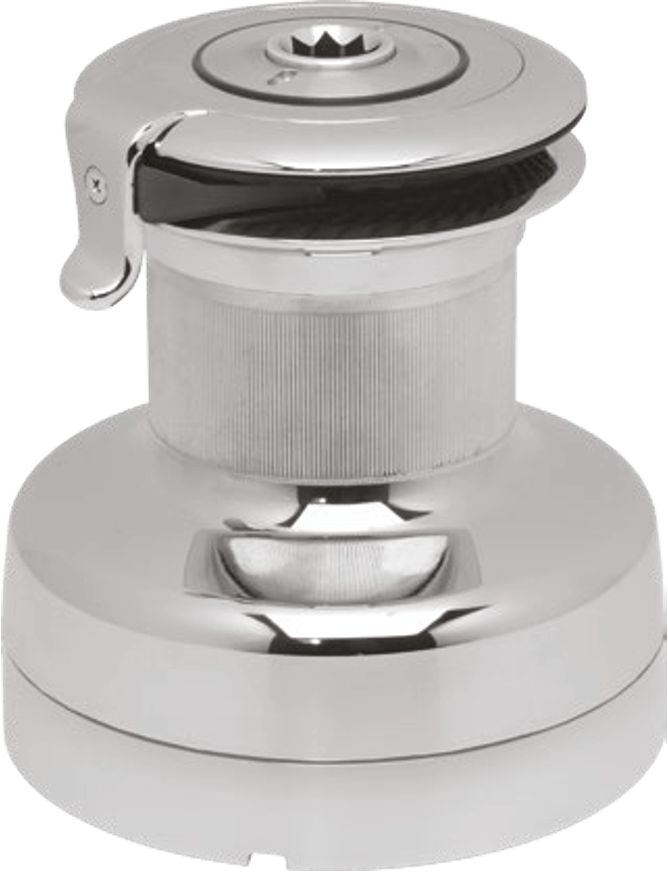

Specifications for Antal 62 3-Speed Self-Tailing Chromed Bronze Classic Winch
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 16 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
| Estilo | Self-Tailing |
| Dimensions | |
| Ø de base (mm) | 224 |
| Ø del tambor (mm) | 120 |
| Altura (mm) | 245 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 1.6 |
| Relación de engranajes 2 (X : 1) | 4.3 |
| Relación de engranajes 3 (X : 1) | 14.9 |
| Velocidades (manual) | 3-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 241 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 89 |
| Recogida de cabo por vuelta - 3ª velocidad (mm) | 26 |
| Relación de potencia 1 (X : 1) | 6.6 |
| Relación de potencia 2 (X : 1) | 17.8 |
| Relación de potencia 3 (X : 1) | 62.1 |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Tamaño | 62 |
| Weight | |
| Peso (g) | 19360 |
| Garantía (años) | 3 |
Three Reduced Speed Classic Series Winch
The push-button on the base starts the first gear (the fastest); second and third gear are automatically selected simply by reversing the rotation of the handle.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Classic series winches (CHC) are supplied not only with a chromed drum, ST disks and ST arm, as the chrome series models (CH), but also with a chromed lower skirt, thus being completely chromed. The chrome-plating is carried out with great care to guarantee maximum durability. First the unit are highly polished, then thickly nickel-plated and finally finisched in chrome.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 16 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
|---|---|
| Estilo | Self-Tailing |
| Dimensions | |
|---|---|
| Ø de base (mm) | 224 |
| Ø del tambor (mm) | 120 |
| Altura (mm) | 245 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 1.6 |
| Relación de engranajes 2 (X : 1) | 4.3 |
| Relación de engranajes 3 (X : 1) | 14.9 |
| Velocidades (manual) | 3-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 241 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 89 |
| Recogida de cabo por vuelta - 3ª velocidad (mm) | 26 |
| Relación de potencia 1 (X : 1) | 6.6 |
| Relación de potencia 2 (X : 1) | 17.8 |
| Relación de potencia 3 (X : 1) | 62.1 |
| Material | |
|---|---|
| Material | Chromed Bronze |
| Undefined | |
|---|---|
| Tamaño | 62 |
| Weight | |
|---|---|
| Peso (g) | 19360 |
| Garantía (años) | 3 |
