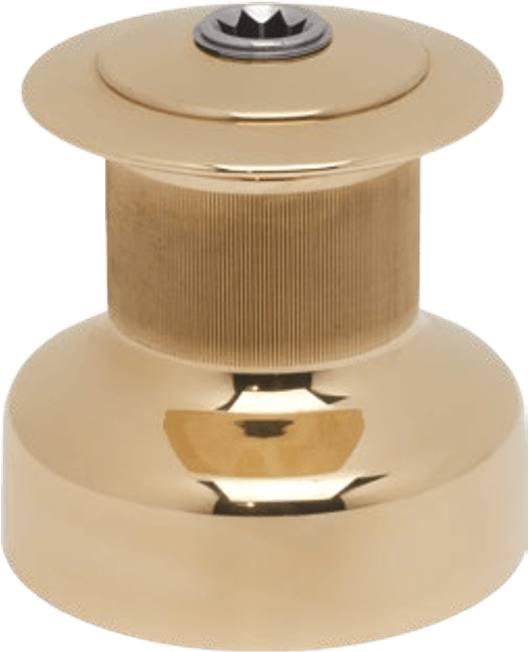

Specifications for Antal 60 2-Speed Plain-Top Bronze Classic Winch
| Boat | |
|---|---|
| Estilo | Plain-Top |
| Dimensions | |
| Ø de base (mm) | 224 |
| Ø del tambor (mm) | 105 |
| Altura (mm) | 211 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 3.9 |
| Relación de engranajes 2 (X : 1) | 12.9 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 85 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 26 |
| Relación de potencia 1 (X : 1) | 18.7 |
| Relación de potencia 2 (X : 1) | 61.2 |
| Material | |
| Material | Bronze |
| Undefined | |
| Tamaño | 60 |
| Weight | |
| Peso (g) | 13860 |
| Garantía (años) | 3 |
Classic Series Winches
Quick and powerful operation is obtainable with the first reduced speed, then with increasing load, simply wind in the opposite direction the second gear and maximum power is automatically selected. Marine bronze is used for gears, AISI 316 stainless steel for central rod and roller bearings, CNC aluminium base, hard black anodized aluminium (AL) or chrome-plated (CH) drum.
POLISHED BRONZE (BN): rather than plating the bronze with chrome, the polished bronze winches use the natural colour of the bronze material to a polished finish.
Standard winches available in two versions, with black aluminum drum and chromed drum. These are non self-tailing winches. Powers range from 5 to 60.
Classic series winches (BNC) are supplied not only with a bronze drum, ST disks and ST arm, as the bronze series models (BN), but also with a bronze lower skirt, thus being completely bronze.
Especificaciones
| Boat | |
|---|---|
| Estilo | Plain-Top |
| Dimensions | |
|---|---|
| Ø de base (mm) | 224 |
| Ø del tambor (mm) | 105 |
| Altura (mm) | 211 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 3.9 |
| Relación de engranajes 2 (X : 1) | 12.9 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 85 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 26 |
| Relación de potencia 1 (X : 1) | 18.7 |
| Relación de potencia 2 (X : 1) | 61.2 |
| Material | |
|---|---|
| Material | Bronze |
| Undefined | |
|---|---|
| Tamaño | 60 |
| Weight | |
|---|---|
| Peso (g) | 13860 |
| Garantía (años) | 3 |
