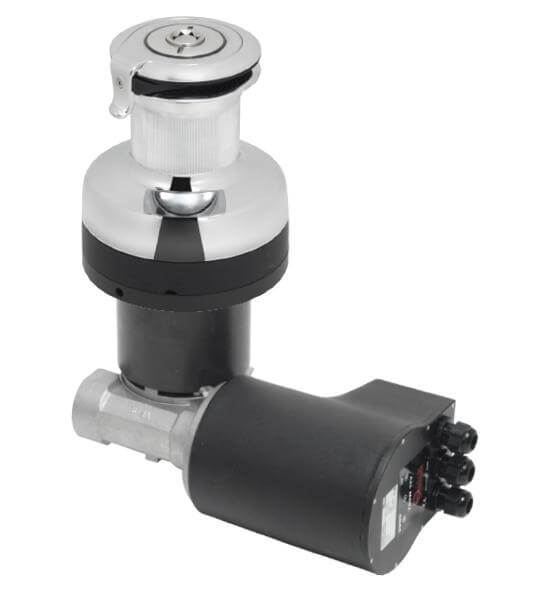

Antal 44 2-Speed Electric (Horizontal) 24V Chromed Bronze Winch (2-Speed Manual)
Specifications for Antal 44 2-Speed Electric (Horizontal) 24V Chromed Bronze Winch (2-Speed Manual)
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Electrics | |
| Tensión (V) | 24 |
| Potencia (W) | 700 |
| Velocidad (motor) | 2-Speed |
| Boat | |
| Estilo | Horizontal |
| Dimensions | |
| A (mm) | 189 |
| B (mm) | 263 |
| C (mm) | 115 |
| D (mm) | 173 |
| d (mm) | 93 |
| E (mm) | 64 |
| H (mm) | 202 |
| Ø de base (mm) | 173 |
| Ø del tambor (mm) | 93 |
| Altura (mm) | 202 |
| Longitud del motor (mm) | 263 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 3.7 |
| Relación de engranajes 2 (X : 1) | 8 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 80 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 38 |
| Velocidad de línea - 1ª velocidad (m/min) | 12 |
| Velocidad de línea - 2ª velocidad (m/min) | 5.5 |
| Relación de potencia 1 (X : 1) | 20 |
| Relación de potencia 2 (X : 1) | 43 |
| Carga de tiro - Máx (kg) | 900 |
| Detalles de la falda | Black Aluminium |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Espesor de cubierta Máx (mm) | 64 |
| Tamaño | 44 |
| Weight | |
| Peso (g) | 20700 |
| Garantía (años) | 3 |
Two Reduced Speed Electric Horizontal Winch
The three models XT40, XT44 and XT48 are powered with a 700 Watt motor, available in 12 and 24 volt versions. Two switches, one control box and one breaker complete the system.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
HORIZONTAL AND VERTICAL MOTORS - All the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.
MANUAL USE - Simply insert the handle to disconnect the gearbox-motor unit. Greater safety: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle. Greater efficiency: the gearbox-motor unit does not turn in manual use, avoiding needless friction.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Electrics | |
|---|---|
| Tensión (V) | 24 |
| Potencia (W) | 700 |
| Velocidad (motor) | 2-Speed |
| Boat | |
|---|---|
| Estilo | Horizontal |
| Dimensions | |
|---|---|
| A (mm) | 189 |
| B (mm) | 263 |
| C (mm) | 115 |
| D (mm) | 173 |
| d (mm) | 93 |
| E (mm) | 64 |
| H (mm) | 202 |
| Ø de base (mm) | 173 |
| Ø del tambor (mm) | 93 |
| Altura (mm) | 202 |
| Longitud del motor (mm) | 263 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 3.7 |
| Relación de engranajes 2 (X : 1) | 8 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 80 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 38 |
| Velocidad de línea - 1ª velocidad (m/min) | 12 |
| Velocidad de línea - 2ª velocidad (m/min) | 5.5 |
| Relación de potencia 1 (X : 1) | 20 |
| Relación de potencia 2 (X : 1) | 43 |
| Carga de tiro - Máx (kg) | 900 |
| Detalles de la falda | Black Aluminium |
| Material | |
|---|---|
| Material | Chromed Bronze |
| Undefined | |
|---|---|
| Espesor de cubierta Máx (mm) | 64 |
| Tamaño | 44 |
| Weight | |
|---|---|
| Peso (g) | 20700 |
| Garantía (años) | 3 |
