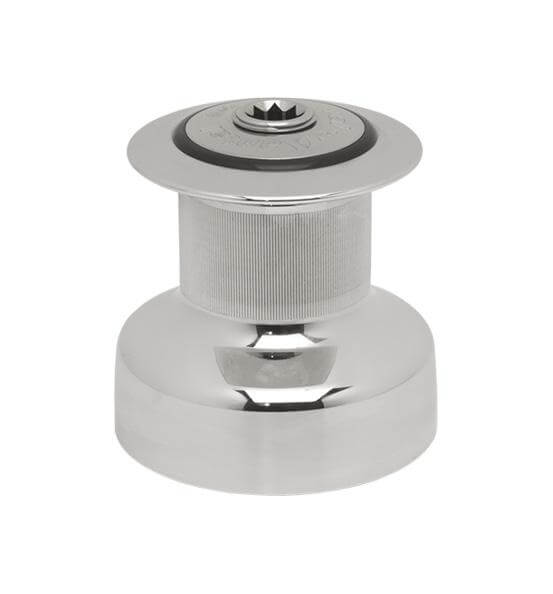

Specifications for Antal 30 2-Speed Plain-Top Chromed Bronze Winch
| Boat | |
|---|---|
| Estilo | Plain-Top |
| Dimensions | |
| Ø de base (mm) | 128 |
| Ø del tambor (mm) | 75 |
| Altura (mm) | 125 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 1.1 |
| Relación de engranajes 2 (X : 1) | 4.2 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 235 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 60 |
| Relación de potencia 1 (X : 1) | 7 |
| Relación de potencia 2 (X : 1) | 28 |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Tamaño | 30 |
| Weight | |
| Peso (g) | 3800 |
| Garantía (años) | 3 |
Two Speed Winch: Direct, Reduced
The first speed is direct (one turn of the drum for each turn of the handle); the second speed is reduced: slower but more powerful. Bronze base and gears, AISI 316 stainless steel central rod and roller bearings. Medium size models for boats up to 9-10 m. Available in black anodized aluminium (AL) or chrome-plated (CH) drums
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
Standard winches available in two versions, with black aluminum drum and chromed drum. These are non self-tailing winches. Powers range from 5 to 60.
Especificaciones
| Boat | |
|---|---|
| Estilo | Plain-Top |
| Dimensions | |
|---|---|
| Ø de base (mm) | 128 |
| Ø del tambor (mm) | 75 |
| Altura (mm) | 125 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 1.1 |
| Relación de engranajes 2 (X : 1) | 4.2 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 235 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 60 |
| Relación de potencia 1 (X : 1) | 7 |
| Relación de potencia 2 (X : 1) | 28 |
| Material | |
|---|---|
| Material | Chromed Bronze |
| Undefined | |
|---|---|
| Tamaño | 30 |
| Weight | |
|---|---|
| Peso (g) | 3800 |
| Garantía (años) | 3 |
