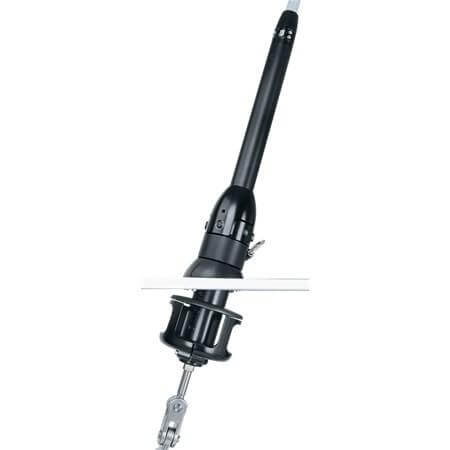

Specifications for Harken MKIV Unit 1 Underdeck Furling System
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 28 |
| Dimensions | |
| A (mm) | 397 - 270 |
| B (mm) | 140 |
| C (mm) | 244 - 117 |
| J (mm) | 25 |
| K (mm) | 29 |
| Ø tamburo (mm) | 140 |
| Ø perno (mm) | 12.7 |
| Ø cavo metallico Max (mm) | 8 |
| Furling | |
| Lunghezza estrusione (mm) | 2130 |
| Ø estrusione (mm) | 25 |
| Riferimento estrusione | 7411.30 |
| Peso estrusione (g/m) | 515 |
| Lunghezza strallo Max (mm) | 16120 |
| Lunghezza strallo Std. (mm) | 13990 |
| Canaletta ralinga (Singola/Doppia) | Double |
| Ø ralinga (mm) | 5 |
| Rigging | |
| Dimensione asta DASH Max | -10 |
| Ø stelo Max (mm) | 6.35 |
| Weight | |
| Peso (g) | 43 |
|
Harken MKIV, MKIC Ocean & MKIV Underdeck Range.pdf
Harken Catalogue for the MKIV, MKIV Ocean and MKIV Underdeck Ranges.
|
|
|
|
MKIV Unit 1,2,3 UD_EN.pdf
English Jib Reefing and Furling Installation Manual for H-7411.11 1/2 (Unit 1), H-7412.11 5/8 (Unit 2), H-7413.11 3/4 (Unit 3) and H-7413.11 7/8 (Unit 3) Furlers
|
Harken® MKIV Underdeck Furling is the perfect solution for performance racers and cruisers who want an aerodynamic system with a minimal amount of equipment above deck. The drum is located beneath the deck, lowering the tack height for maximized sail area.
For occasional racers, the MKIV line is engineered with ease, durability, and winning in mind. The split drum can be removed easily for use with racing sails, providing the longest possible luff length. Independent halyard and tack swivels furl sail center before head and tack for improved sail shape when reefed, whilst being lightweight, an advantage when hoisted as it reduces pitching and heeling. Stainless steel feeder allows fast singlehanded hoist and sail changes, with the precision-extruded, double-groove foils for smooth sail handling.
Specifiche
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 36 |
| Dimensione barca consigliata - Min (ft) | 28 |
| Dimensions | |
|---|---|
| A (mm) | 397 - 270 |
| B (mm) | 140 |
| C (mm) | 244 - 117 |
| J (mm) | 25 |
| K (mm) | 29 |
| Ø tamburo (mm) | 140 |
| Ø perno (mm) | 12.7 |
| Ø cavo metallico Max (mm) | 8 |
| Furling | |
|---|---|
| Lunghezza estrusione (mm) | 2130 |
| Ø estrusione (mm) | 25 |
| Riferimento estrusione | 7411.30 |
| Peso estrusione (g/m) | 515 |
| Lunghezza strallo Max (mm) | 16120 |
| Lunghezza strallo Std. (mm) | 13990 |
| Canaletta ralinga (Singola/Doppia) | Double |
| Ø ralinga (mm) | 5 |
| Rigging | |
|---|---|
| Dimensione asta DASH Max | -10 |
| Ø stelo Max (mm) | 6.35 |
| Weight | |
|---|---|
| Peso (g) | 43 |
