Specifications for Wichard Speedlink Trigger Snap Shackle Webbing Eye - SWL 1.4T
| Boat | |
|---|---|
| Stile | Swivel Bail (Large) |
| Load | |
| SWL (kg) | 1440 |
| NBL (kg) | 3400 |
| Dimensions | |
| A (mm) | 17 |
| B (mm) | 13 |
| C (mm) | 26 |
| Lunghezza totale (mm) | 83 |
| Material | |
| Materiale | Stainless Steel |
| Grado del materiale | AISI 630 (17-4 / HR) |
| Compatibility | |
| Tipo di archetto | Swivel webbing eye |
| Weight | |
| Peso (g) | 95 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

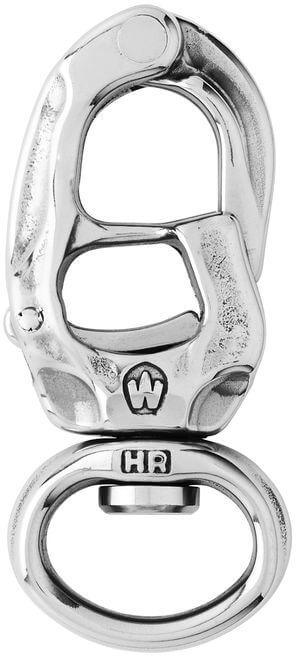

Wichard's Speedlink trigger snap shackle with webbing eye swivel and trigger release mechanism to be used with a release fid.
This range of shackles is producted with High Resistance (HR) grade stainless steel, a corrosion resistant hardened material favoured for marine environments.
