Specifications for Wichard Snap Shackle - SWL 3.2T
| Boat | |
|---|---|
| Stile | Swivel Bail (Small) |
| Load | |
| SWL (kg) | 3200 |
| NBL (kg) | 6300 |
| Dimensions | |
| A (mm) | 30 |
| B (mm) | 20 |
| Lunghezza totale (mm) | 130 |
| Material | |
| Materiale | Stainless Steel |
| Grado del materiale | AISI 630 (17-4 / HR) |
| Compatibility | |
| Tipo di archetto | Swivel eye |
| Weight | |
| Peso (g) | 371 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

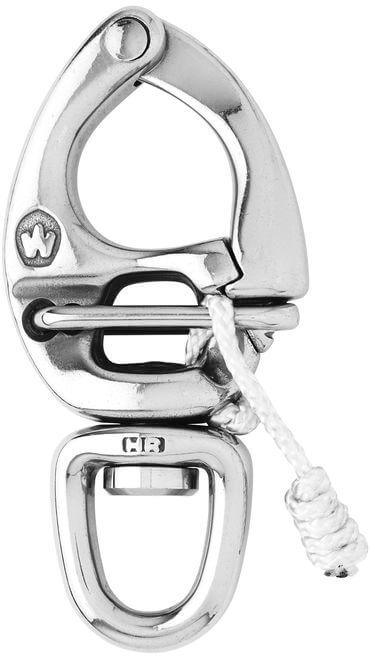

Wichard's Quick release snap shackles with swivel are perfect for attaching the spinnaker sheets or halyard. The shackle functions the quick release by pulling the lanyard supplied with the shackle, opening the catch. The swivel allows the shackle to rotate freely, great for the spinnaker sheets.
This range of shackles is producted with High Resistance (HR) grade stainless steel, a corrosion resistant hardened material favoured for marine environments.
