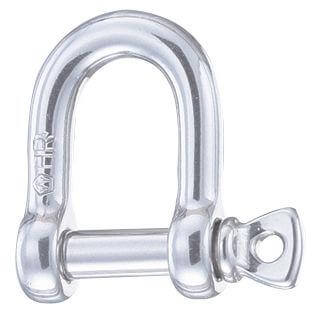

Specifications for Wichard HR D shackle - Dia 16 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 6800 |
| NBL (kg) | 19000 |
| Dimensions | |
| A (mm) | 56 |
| B (mm) | 32 |
| Ø perno (mm) | 16 |
| Material | |
| Materiale | Stainless Steel |
| Grado del materiale | AISI 630 (17-4 / HR) |
| Weight | |
| Peso (g) | 464 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Forged D shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Applications
Applications requesting high loads
Standard applications of shackle
Attachment applications: blocks, head …
Do not use for mooring applications
