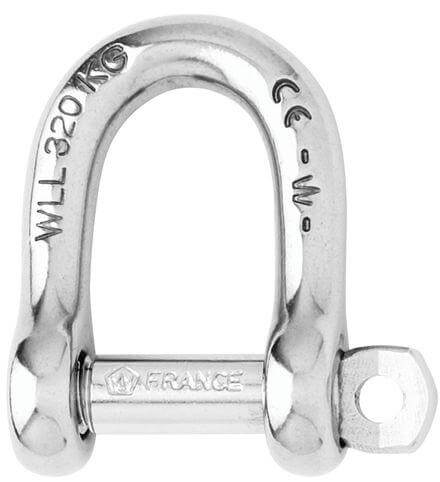

Specifications for Wichard D shackle - Dia 14 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 2400 |
| NBL (kg) | 8000 |
| Dimensions | |
| A (mm) | 47 |
| B (mm) | 28 |
| C (mm) | 14 |
| D (mm) | 28 |
| E (mm) | 13 |
| F (mm) | 82 |
| G (mm) | 78 |
| Ø perno (mm) | 14 |
| Material | |
| Materiale | Stainless Steel |
| Grado del materiale | AISI 316L |
| Weight | |
| Peso (g) | 312 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
D shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Part #1207 is not a self-locking D shackle
Applications
Standard applications of shackle
Attachment applications: blocks, head …
