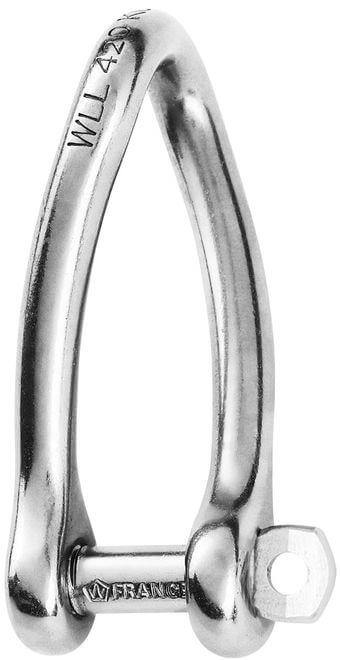

Specifications for Wichard Captive pin twisted shackle - Dia 5 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 480 |
| NBL (kg) | 1500 |
| Dimensions | |
| A (mm) | 37 |
| B (mm) | 10 |
| C (mm) | 6 |
| D (mm) | 11 |
| E (mm) | 5 |
| F (mm) | 50 |
| G (mm) | 27 |
| Ø perno (mm) | 6 |
| Material | |
| Materiale | Stainless Steel |
| Grado del materiale | AISI 316L |
| Weight | |
| Peso (g) | 23 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Captive pin twisted shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Single handed operation for more safety
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Applications
Perfect for application where a 90° angle twist setup is required
Often used to attach an unarticulated part (block on a rail) or on purchases
