The Ubi Maior FR line of furlers offers a complete range with units suitable for dingies & sportsboats right up to 100ft yachts. The drum and head are machined from a single piece of aluminum 6082T6 and contain cylindrical roller thrust bearings. Top-down and Bottom-up versions are available, with or without the patented REWIND ratchet system.

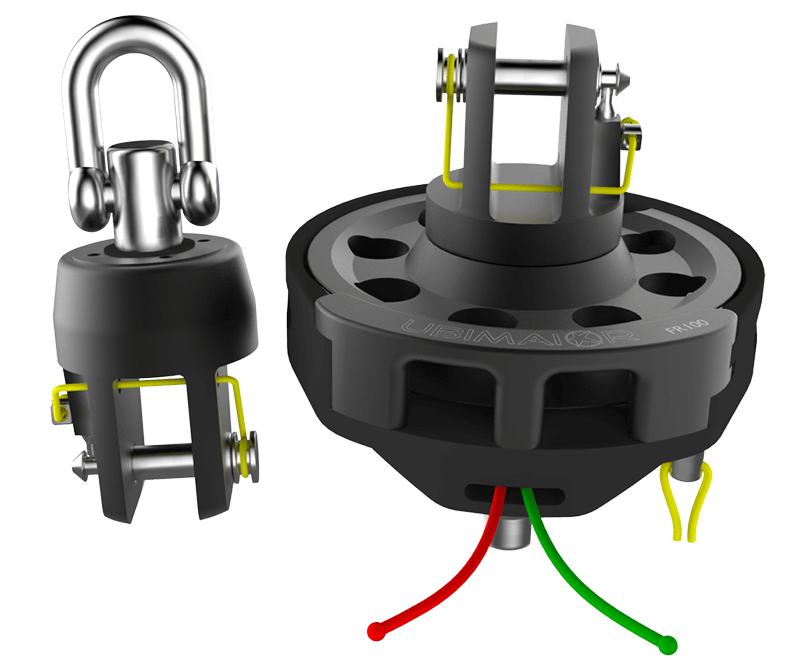

This 'RW' set includes a bottom-up drum with ratchet pre-installed, plus a head swivel with HR shackle. Various drum attachments can be chosen from the accessories.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 8 |
| Boat | |
|---|---|
| Superficie vela Gennaker/Code 0 Max, monotipi (m²) | 70 |
| Load | |
|---|---|
| SWL (kg) | 1500 |
| NBL (kg) | 3000 |
| Dimensions | |
|---|---|
| Ø tamburo (mm) | 100 |
| Ø perno ganascia (mm) | 8 |
| Larghezza ganascia (mm) | 16.1 |
| Weight | |
|---|---|
| Peso (g) | 1020 |
