Specifications for Tylaska T30S Standard bail snap shackle
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 80 |
| Dimensione barca consigliata - Min (ft) | 60 |
| Stile | Swivel Bail (Small) |
| Load | |
| SWL (kg) | 6800 |
| NBL (kg) | 13610 |
| Dimensions | |
| A (mm) | 31.2 |
| B (mm) | 30.5 |
| C (mm) | 166 |
| Material | |
| Materiale | Stainless Steel |
| Grado del materiale | 17-4PH SS |
| Weight | |
| Peso (g) | 760 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

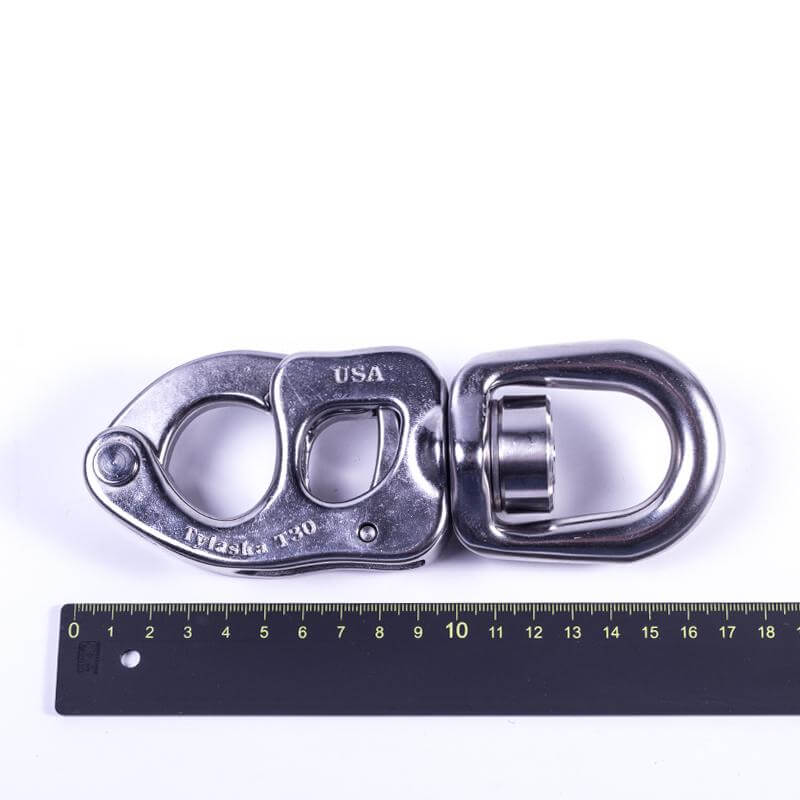

The Tylaska T30 Snap Shackle is designed for large sailboats that need to support strong loads. With a SWL of 6,818kg, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30. Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 80 |
| Dimensione barca consigliata - Min (ft) | 60 |
| Stile | Swivel Bail (Small) |
| Load | |
|---|---|
| SWL (kg) | 6800 |
| NBL (kg) | 13610 |
| Dimensions | |
|---|---|
| A (mm) | 31.2 |
| B (mm) | 30.5 |
| C (mm) | 166 |
| Material | |
|---|---|
| Materiale | Stainless Steel |
| Grado del materiale | 17-4PH SS |
| Weight | |
|---|---|
| Peso (g) | 760 |
