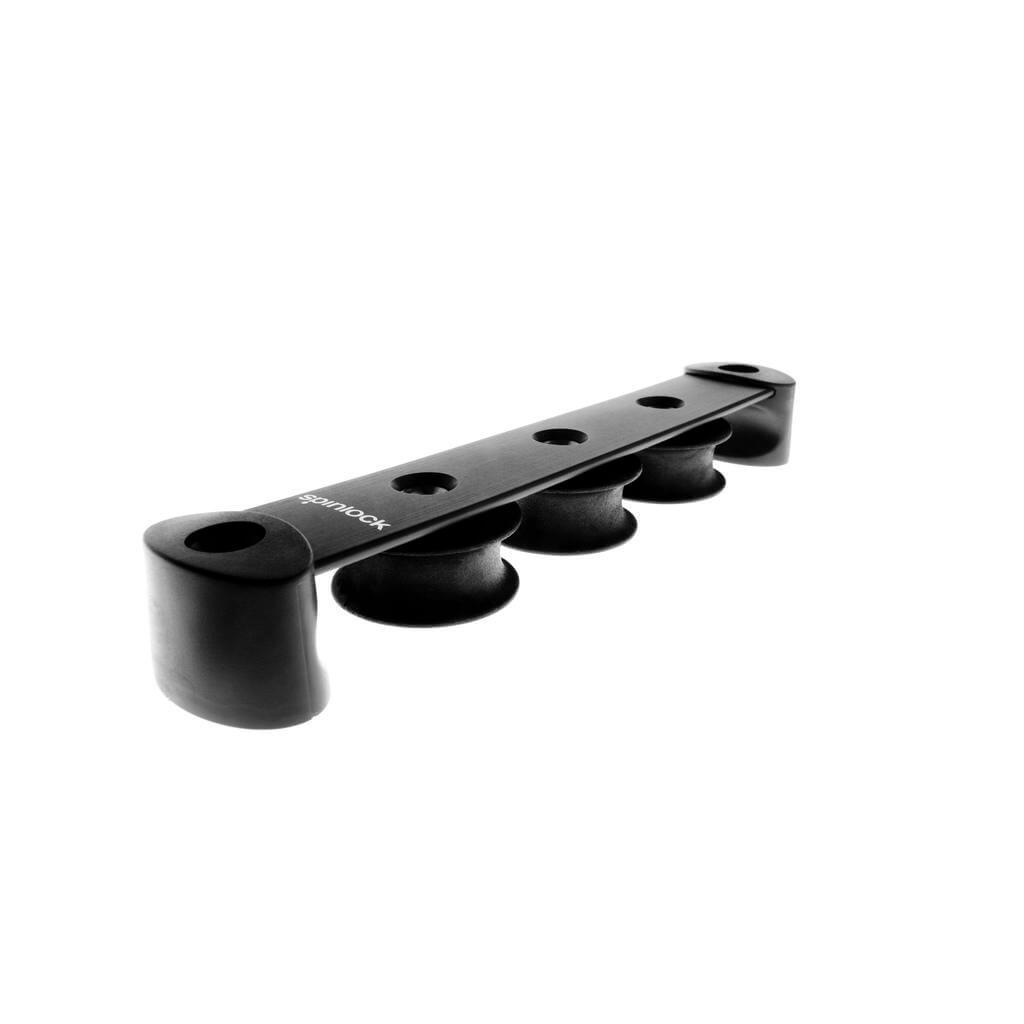

Spinlock T38 – 3 Sheave Deck Organiser (Symmetric and Asymmetric)
The Spinlock T38 3 Sheave Deck Organiser is designed for yachts requiring efficient routing of three control lines in a compact, high-performance package. With 38 mm sheaves and a low-friction bearing surface, the T38 significantly improves winch efficiency and helps prolong halyard and control line life.
The Vari-camber base follows the natural curvature of the deck, ensuring a clean, secure installation with minimal sealant gaps. Integral end fairings provide safe side loading, protecting lines when entering or leaving the organiser at slight angles. Symmetric and Asymmetric versions allow riggers to optimise layout, weight, and available deck area, with the Asymmetric option offering footprint and weight savings.
Multiple T38 organisers can be stacked on top of one another to increase capacity where space is restricted.
Key Features
• Compact organiser with three 38 mm sheaves
• Efficient bearing surface reduces friction and winch effort
• Integral end fairings for safe side loading
• Vari-camber base follows curved deck profiles
• Symmetric and Asymmetric configurations
• Asymmetric version reduces footprint and weight
• Stackable design for increased sheave capacity
• Safe Working Load (SWL): 600 kg
Applications on Sailing Yachts
A strong choice for yachts running several essential lines aft. Common uses include:
• Leading main, jib, and spinnaker halyards aft
• Routing a combination of two reefing lines and an outhaul
• Managing vang, downhaul, or tack line controls
• Expanding multi-line banks by stacking organisers
• Improving line fairness and reducing friction on performance cruisers
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 600 |
| NBL (kg) | 1200 |
| Blocks | |
|---|---|
| Materiale puleggia | Composite |
| Materiale guance | Composite |
| Dimensions | |
|---|---|
| Interasse fori di fissaggio (mm) | 43 |
| Ø puleggia (mm) | 38 |
| Altezza totale (mm) | 26 |
| Lunghezza totale (mm) | 194 |
| Larghezza totale (mm) | 38 |
| Compatibility | |
|---|---|
| Opzione* | Symmetric oppure Asymmetric |
| Elementi di fissaggio per montaggio | M6 CSK Head (not supplied) |
| Weight | |
|---|---|
| Peso (g) | 154 |
