Specifications for Ropeye Stick-On Ring (10-14) Fairlead
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Boat | |
| Stile | Soft |
| Load | |
| SWL (kg) | 75 |
| NBL (kg) | 150 |
| Blocks | |
| Dimensions | |
| A (mm) | 14 |
| B (mm) | 50 |
| C (mm) | 4 |
| D (mm) | 3 |
| Material | |
| Materiale | Aluminium or Carbon or Glass fibre |
| Weight | |
| Peso (g) | 23 |

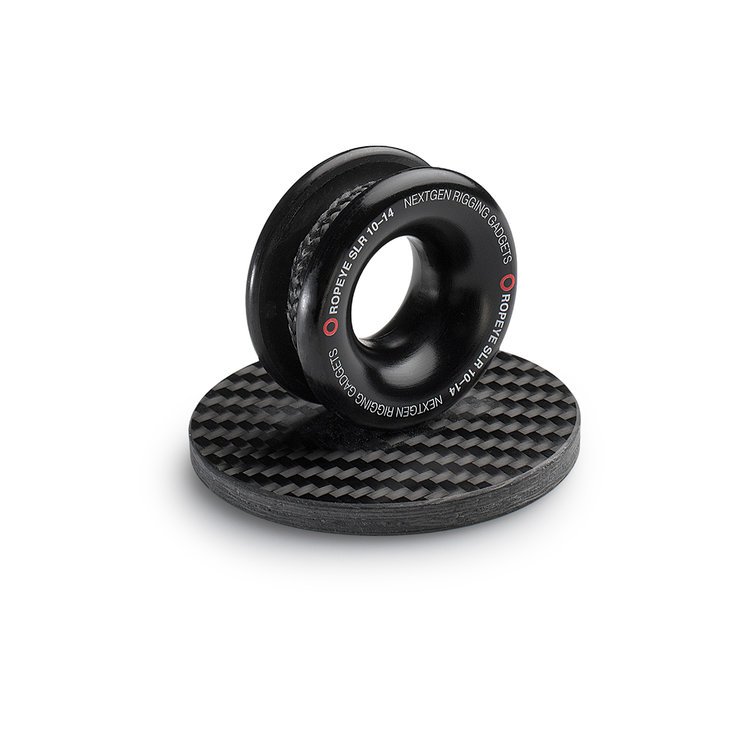

Ropeye Stick-On Ring (10-14) Fairlead – Lightweight & Versatile Adhesive Fairlead
The Ropeye Stick-On Ring (10-14) Fairlead is a low-load, adhesive-mounted fairlead, designed as a simple yet effective line guide for decks, masts, booms, or even internal installations. This innovative solution eliminates the need for drilling, making it ideal for weight-sensitive and retrofit applications. Incorporating the Ropeye SLR 7-10 Rope Thimble, this fairlead provides a smooth, low-friction guiding point for lines up to 10mm in diameter.
Key Features:
✔ Easy Adhesive Installation – No drilling required; mounts securely using resin-based adhesives for a permanent bond or Sikaflex for a removable option.
✔ Lightweight & Low-Profile Design – Made from carbon and anodised aluminium, keeping weight to a minimum while maintaining durability.
✔ Smooth Rope Guidance – Integrated with the SLR 7-10 Rope Thimble, offering a low-friction and secure line guide.
✔ Multi-Surface Compatibility – Suitable for use on deck, mast, boom, or internal locations, allowing for flexible rigging solutions.
✔ Safe Working Load of 50kg – Ideal for low-load applications, helping to organise and guide lines efficiently.
Applications:
- Guiding control lines on decks, masts, and booms.
- Ideal for lightweight boats, dinghies, and performance rigs where drilling is undesirable.
- Internal cable or rope management without permanent modifications.
Installation:
- Prepare the surface by sanding it lightly.
- Clean the sanded area with acetone to remove dust and ensure a strong bond.
- Apply adhesive (resin-based for a permanent bond or Sikaflex for a removable option).
- Press the Ropeye Stick-On Ring firmly into place.
- Wait 24 hours before applying any load to ensure full adhesion.
Warranty: The Ropeye Stick-On Ring (10-14) Fairlead comes with a 2-year warranty, ensuring reliability and performance.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Boat | |
|---|---|
| Stile | Soft |
| Load | |
|---|---|
| SWL (kg) | 75 |
| NBL (kg) | 150 |
| Blocks |
|---|
| Dimensions | |
|---|---|
| A (mm) | 14 |
| B (mm) | 50 |
| C (mm) | 4 |
| D (mm) | 3 |
| Material | |
|---|---|
| Materiale | Aluminium oppure Carbon oppure Glass fibre |
| Weight | |
|---|---|
| Peso (g) | 23 |
