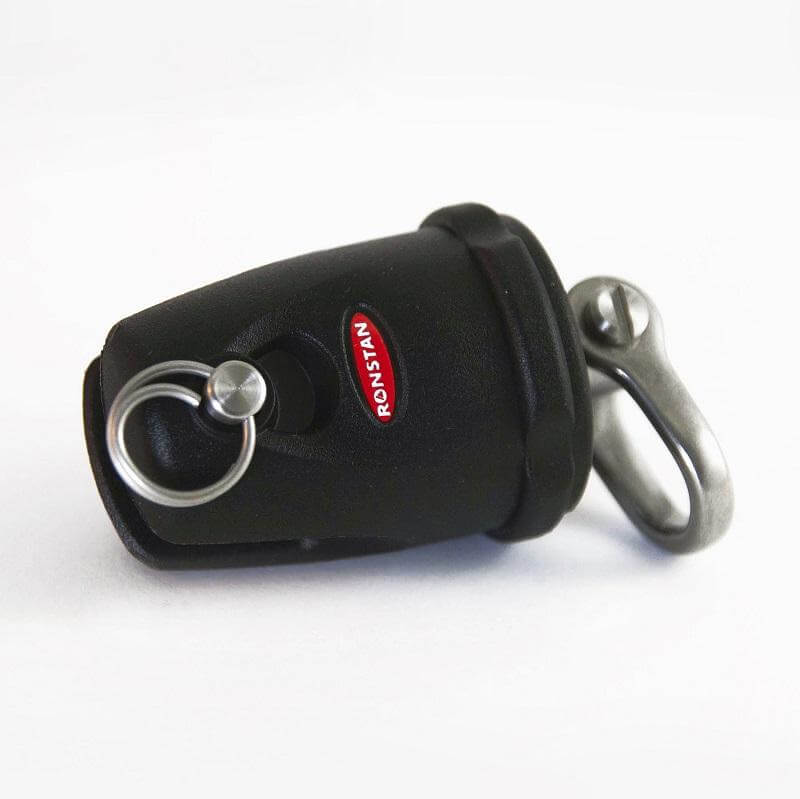

Specifications for Ronstan Series 60 furler - Top swivel
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 650 |
| NBL (kg) | 1300 |
| Dimensions | |
| A (mm) | 62.5 |
| B (mm) | 42.3 |
| C (mm) | 77.1 |
| D (mm) | 32 |
| E (mm) | 8.6 |
| F (mm) | 5.9 |
| G (mm) | 6.4 |
| H (mm) | 4.7 |
| I (mm) | 35.5 |
| Ø perno ganascia (mm) | 6 |
| Larghezza ganascia (mm) | 8.6 |
| Weight | |
| Peso (g) | 84 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Ronstan's range of continuous line furling systems puts great performance and reliability within the reach of cruising and racing sailors alike. The top swivel is the upper half of the gennaker furler system and features high performance ball bearings that are factory sealed and maintenance free. Specified weight excludes shackle. The top shackle can be replaced with RF6170 snap shackle for quick attachment of the swivel to your halyard. Ronstan continuous line furling systems require the sail to be either completely unfurled or completely furled – the furler cannot be used with a partially furled sail.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 650 |
| NBL (kg) | 1300 |
| Dimensions | |
|---|---|
| A (mm) | 62.5 |
| B (mm) | 42.3 |
| C (mm) | 77.1 |
| D (mm) | 32 |
| E (mm) | 8.6 |
| F (mm) | 5.9 |
| G (mm) | 6.4 |
| H (mm) | 4.7 |
| I (mm) | 35.5 |
| Ø perno ganascia (mm) | 6 |
| Larghezza ganascia (mm) | 8.6 |
| Weight | |
|---|---|
| Peso (g) | 84 |
