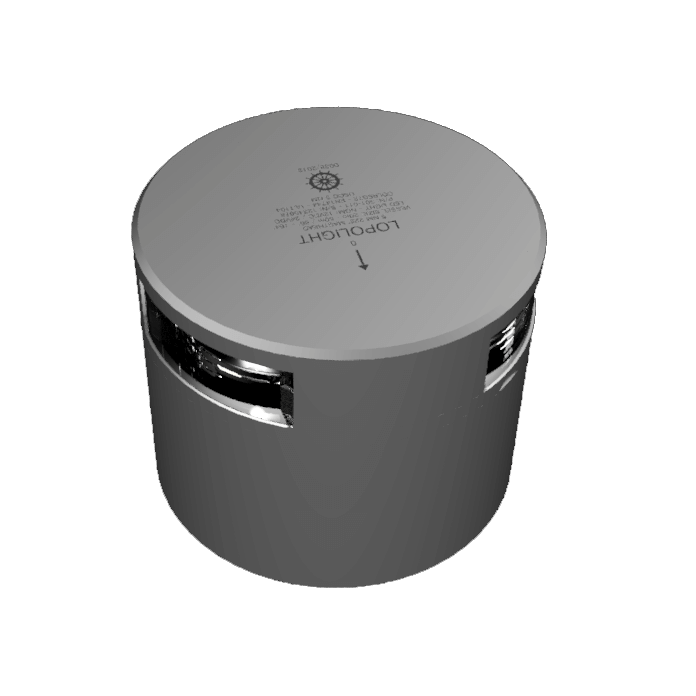

Horizontal mounted on a CSCD (400-034) base
Included in package:
1 Navigation light
2 Mounting screws (M6 * 8 mm)
Installation guide
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Electrics | |
|---|---|
| Tensione di esercizio (V) | 10-32 |
| Tipo di alimentazione | dc. |
| Assorbimento di corrente (mA @ 12VDC) | 320 |
| Assorbimento di corrente (mA @ 24VDC) | 170 |
| Potenza (W) | 4.1 |
| Approvato secondo | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Intensità luminosa (cd) | >52 |
| Temperatura di esercizio | -25°C to 55°C |
| Visibilità (NM) | 5 |
| Impermeabilità | IP68 |
| Boat | |
|---|---|
| Dimensione barca (m) | 20-50M |
| Dimensions | |
|---|---|
| Dimensioni (mm) | Ø92,5mm x 74,5mm |
| Rigging | |
|---|---|
| Calibro minimo del cavo di alimentazione | 0.5mm2 AWG22 |
| Material | |
|---|---|
| Materiale | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Compatibility | |
|---|---|
| Connessione | Plug connector |
| Weight | |
|---|---|
| Peso (g) | 990 |
| Garanzia (anni) | 5 year limited warranty |
