Specifications for Lewmar 7 1-Speed Plain-Top Chromed Bronze EVOⓇ Sport Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Plain-Top |
| Load | |
| SWL (kg) | 341 |
| Dimensions | |
| B (mm) | 108 |
| D (mm) | 65 |
| H (mm) | 102 |
| L (mm) | 40 |
| Base Ø (mm) | 108 |
| Drum Ø (mm) | 65 |
| Height (mm) | 102 |
| Line entry height (mm) | 40 |
| Winches | |
| Gear ratio 1 (X : 1) | 1 |
| Gears (Manual) | 1-Speed |
| Line recovery per rotation - 1st gear (mm) | 320 |
| Power ratio 1 (X : 1) | 7.9 |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Size | 7 |
| Weight | |
| Weight (g) | 1700 |
| Warranty (yrs) | 7 |

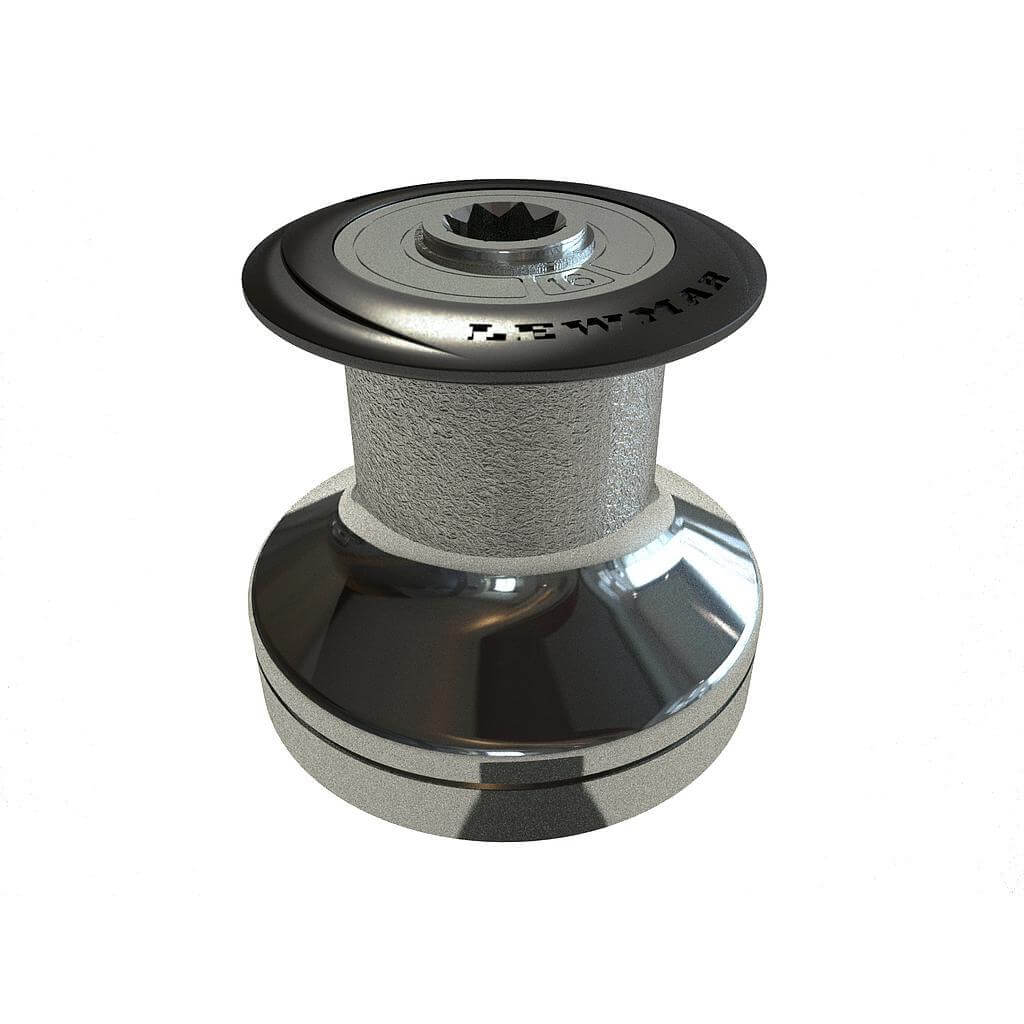

Lewmar's Plain-Top EVO® Sport Chromed Bronze Winch
The EVO® Sport complements the EVO® Winch Range. Best suited for sport boats requiring constant trimming, and where weight consideration is a premium. The EVO® Sport is also suitable as a mast mounted winch.
Features
Architecture based on self tailing EVO® Winch
Easy Servicing– no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Plain-Top to Self-Tailing - Size 30 and 40 can be converted into an EVO® Self tailing winch retrospectively
Manual to Electric - Size 40 can be converted to electric
Choice of finishes: Black alloy or Chrome bronze
Available in size 6 to size 40
Specifiche
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
|---|---|
| Style | Plain-Top |
| Load | |
|---|---|
| SWL (kg) | 341 |
| Dimensions | |
|---|---|
| B (mm) | 108 |
| D (mm) | 65 |
| H (mm) | 102 |
| L (mm) | 40 |
| Base Ø (mm) | 108 |
| Drum Ø (mm) | 65 |
| Height (mm) | 102 |
| Line entry height (mm) | 40 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 1 |
| Gears (Manual) | 1-Speed |
| Line recovery per rotation - 1st gear (mm) | 320 |
| Power ratio 1 (X : 1) | 7.9 |
| Material | |
|---|---|
| Material | Chromed Bronze |
| Undefined | |
|---|---|
| Size | 7 |
| Weight | |
|---|---|
| Weight (g) | 1700 |
| Warranty (yrs) | 7 |
