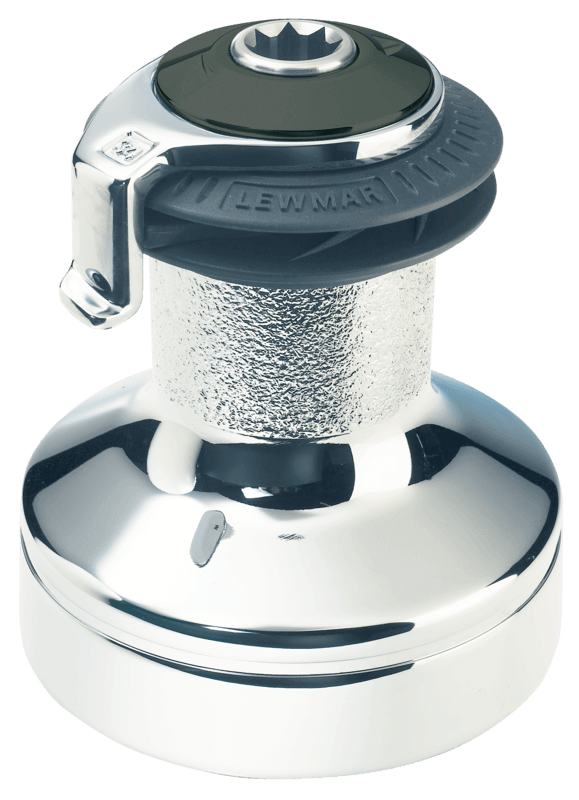

Specifications for Lewmar 48 2-Speed Self-Tailing Chromed Bronze Ocean Winch
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 14 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
| Stile | Self-Tailing |
| Load | |
| SWL (kg) | 2756 |
| Dimensions | |
| B (mm) | 181 |
| D (mm) | 93 |
| H (mm) | 208 |
| L (mm) | 86 |
| Ø base (mm) | 181 |
| Ø tamburo (mm) | 93 |
| Altezza (mm) | 208 |
| Altezza ingresso cima (mm) | 86 |
| Winches | |
| Rapporto ingranaggi 1 (X : 1) | 2.6 |
| Rapporto ingranaggi 2 (X : 1) | 9 |
| Marce (manuale) | 2-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 251 |
| Recupero cima per giro - 2ª marcia (mm) | 73 |
| Rapporto potenza 1 (X : 1) | 13.9 |
| Rapporto potenza 2 (X : 1) | 48.6 |
| Material | |
| Materiale | Chromed Bronze |
| Undefined | |
| Taglia | 48 |
| Weight | |
| Peso (g) | 12100 |
| Garanzia (anni) | 3 |
|
Lewmar - How to Service an Ocean Winch
A step-by-stepy guide to serviving the Ocean winch by Lewmar
|
|
|
Manual-Winch Part Manual - Volume 10.pdf
Manual - Volume 10
|
|
|
|
Manual-Winch Service Manual B2304 iss6-2.pdf
B2304 - Issue 6
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
Lewmar's Self-Tailing Ocean Chromed Bronze Winch
Lewmar's Ocean winch range is the most popular winch ever made. Its styling still attracts boat builders looking for a classic look, or boat owners looking to upgrade or replace their existing winches.
Features
Easy Servicing - no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Choice of two finishes - Ocean winches are available in grey alloy and chrome bronze for the cruising sailor
Manual to Electric - Conversion kits are available from size 40 and above
Available in Size 16 to Size 65
Solid construction respected by boat builders and sailors for generations
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 14 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
|---|---|
| Stile | Self-Tailing |
| Load | |
|---|---|
| SWL (kg) | 2756 |
| Dimensions | |
|---|---|
| B (mm) | 181 |
| D (mm) | 93 |
| H (mm) | 208 |
| L (mm) | 86 |
| Ø base (mm) | 181 |
| Ø tamburo (mm) | 93 |
| Altezza (mm) | 208 |
| Altezza ingresso cima (mm) | 86 |
| Winches | |
|---|---|
| Rapporto ingranaggi 1 (X : 1) | 2.6 |
| Rapporto ingranaggi 2 (X : 1) | 9 |
| Marce (manuale) | 2-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 251 |
| Recupero cima per giro - 2ª marcia (mm) | 73 |
| Rapporto potenza 1 (X : 1) | 13.9 |
| Rapporto potenza 2 (X : 1) | 48.6 |
| Material | |
|---|---|
| Materiale | Chromed Bronze |
| Undefined | |
|---|---|
| Taglia | 48 |
| Weight | |
|---|---|
| Peso (g) | 12100 |
| Garanzia (anni) | 3 |
