KA-KB08_Karver Drawing Roller Bearing Block_001.PDF
Karver KB8 Roller Bearing Block Technical Drawing
|
|
|
|
KA-KB_Karver Drawing Roller Bearing Block Range_001.PDF
Karver KB Roller Bearing Block Technical Drawing
|
|
|
|
KA-KB08_Karver 2D Drawing Roller Bearing Block_001.DWG
Karver KB8 2D Roller Bearing Block Technical Drawing
|
|
|
|
KA-KB_Karver 2D Drawing Roller Bearing Block Range_001.DWG
Karver KB 2D Roller Bearing Blocks Technical Drawing
|
|
|
|
KA-KB08_Karver 3D Drawing Roller Bearing Block_001.IGS
Karver KB8 3D Roller Bearing Block Technical Drawing
|

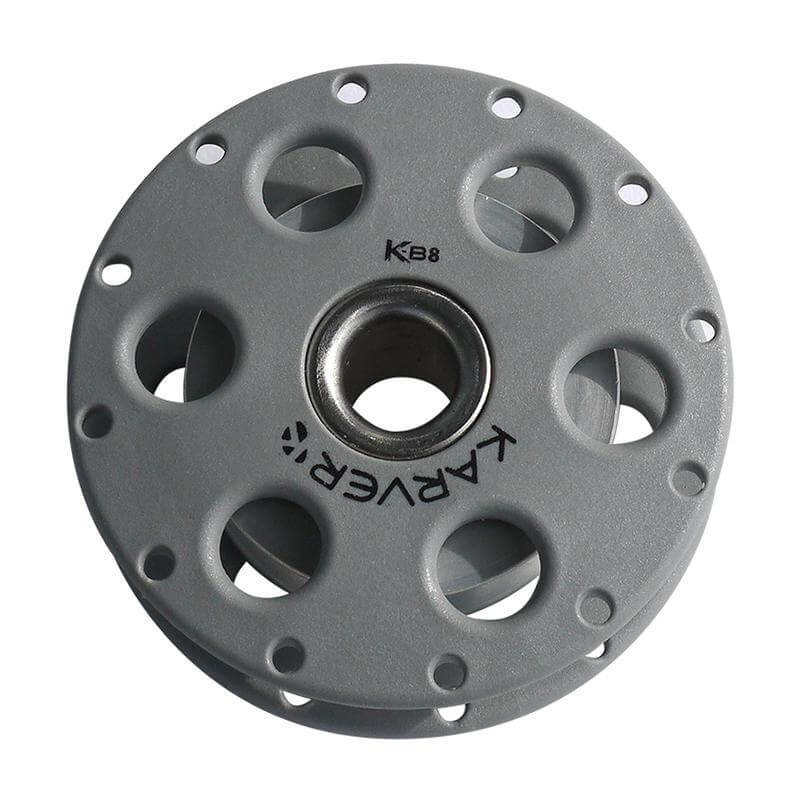

This award winning range of KB blocks is lightweight and versatile. Designed specifically to be used with lashings the same block can be used in multiple different configurations and reduces weight to approx 50% compared to a traditional block, plus connection, for the same working load. With the primary attachment through the centre of the block this is also extremely safe as the running line will be retained within the lashing even if the block should fail. The KB8 block has fibre reinforced composite cheeks, an aluminium sheave with a stainless hub and Peek roller bearing. They have been specifically designed for general use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 600 |
| NBL (kg) | 1200 |
| Blocks | |
|---|---|
| Cricchetto | No |
| Dimensions | |
|---|---|
| Ø interno (mm) | 10 |
| Ø puleggia (mm) | 35 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Peso (g) | 51 |
