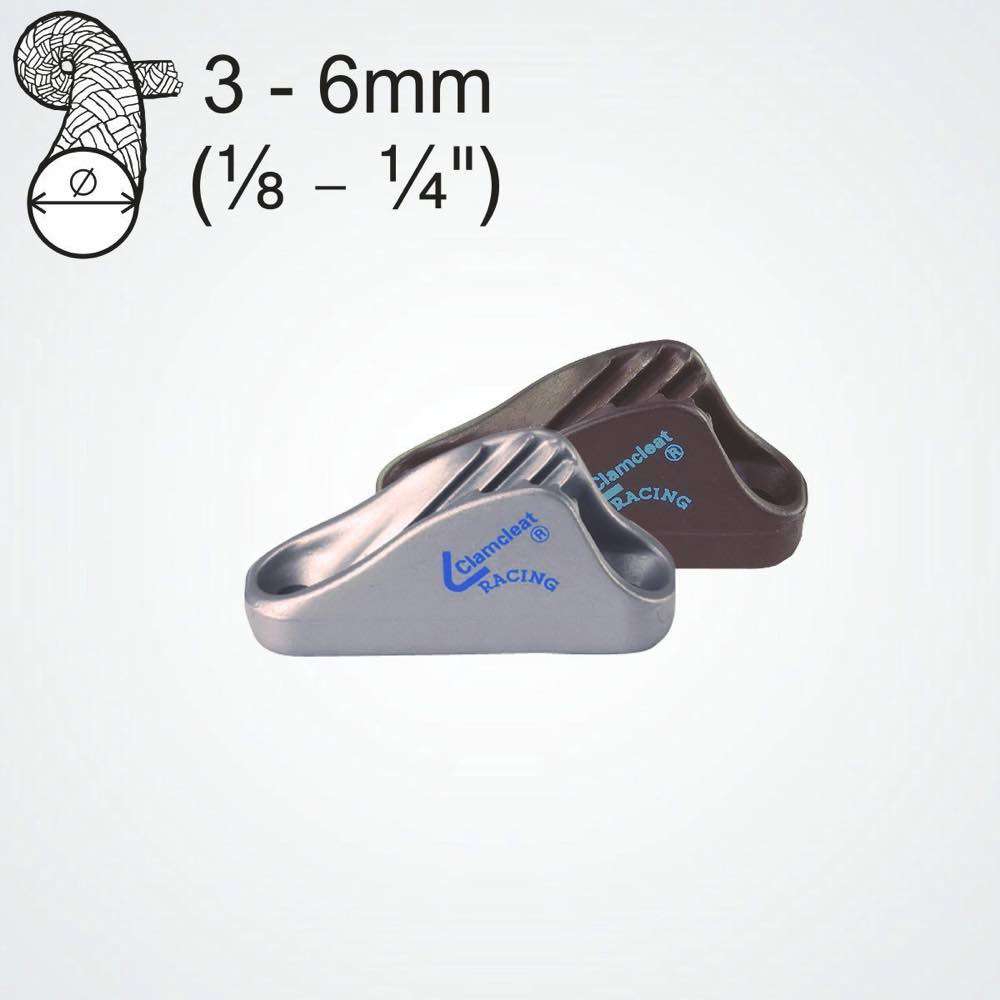

Clamcleat CL222 Racing Mini Aluminium Rope Cleat for 3–6mm Lines
The Clamcleat CL222 Racing Mini Aluminium Rope Cleat is a sleek, lightweight design for precise and reliable rope control. Suitable for ropes from 3–6mm, it provides a smooth, positive lock as the rope drops cleanly into the teeth and releases easily under load.
Manufactured from marine-grade aluminium, the CL222 combines strength with corrosion resistance, making it ideal for dinghy control lines, halyards, and other small-boat rigging. Its versatile shape allows fitting to both flat and curved surfaces using rivets, countersunk screws, or bolts, and it can also be sewn or riveted onto webbing or fabric — perfect for lightweight applications or textile mounting.
Two finishes are available:
- CL222 – Silver stove-enamel finish for a cost-effective, high-quality coating.
- CL222AN – Hard-anodised finish for a tough, wear-resistant surface in demanding environments.
The CL222’s compact form and reliability have made it a popular choice not only for sailing but also for non-marine applications such as rope tensioning tools for African drums and general rope control systems.
Accessory and related products:
- CL275 – Smaller open aluminium cleat.
- CL254 – Larger aluminium version for 4–8mm ropes.
- CL204 – Nylon version (Mini).
- CL211 Mk2 – Same size cleat with an integrated fairlead.
- CL802 Tapered Pad – Helps optimise rope alignment when mounting.
The CL222 is a proven favourite for sailors seeking compact, durable, and elegant rope control hardware — built for long service life in both marine and outdoor environments.
Specifiche
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 6 |
| Recommended line - Min Ø (mm) | 3 |
| Boat |
|---|
| Dimensions | |
|---|---|
| Fixing hole Ø (mm) | 4 |
| Fixing hole spacing (mm) | 36 |
| Height (mm) | 21 |
| Length (mm) | 48 |
| Width (mm) | 15 |
| Material | |
|---|---|
| Material | Aluminium |
| Weight | |
|---|---|
| Weight (g) | 16 |
