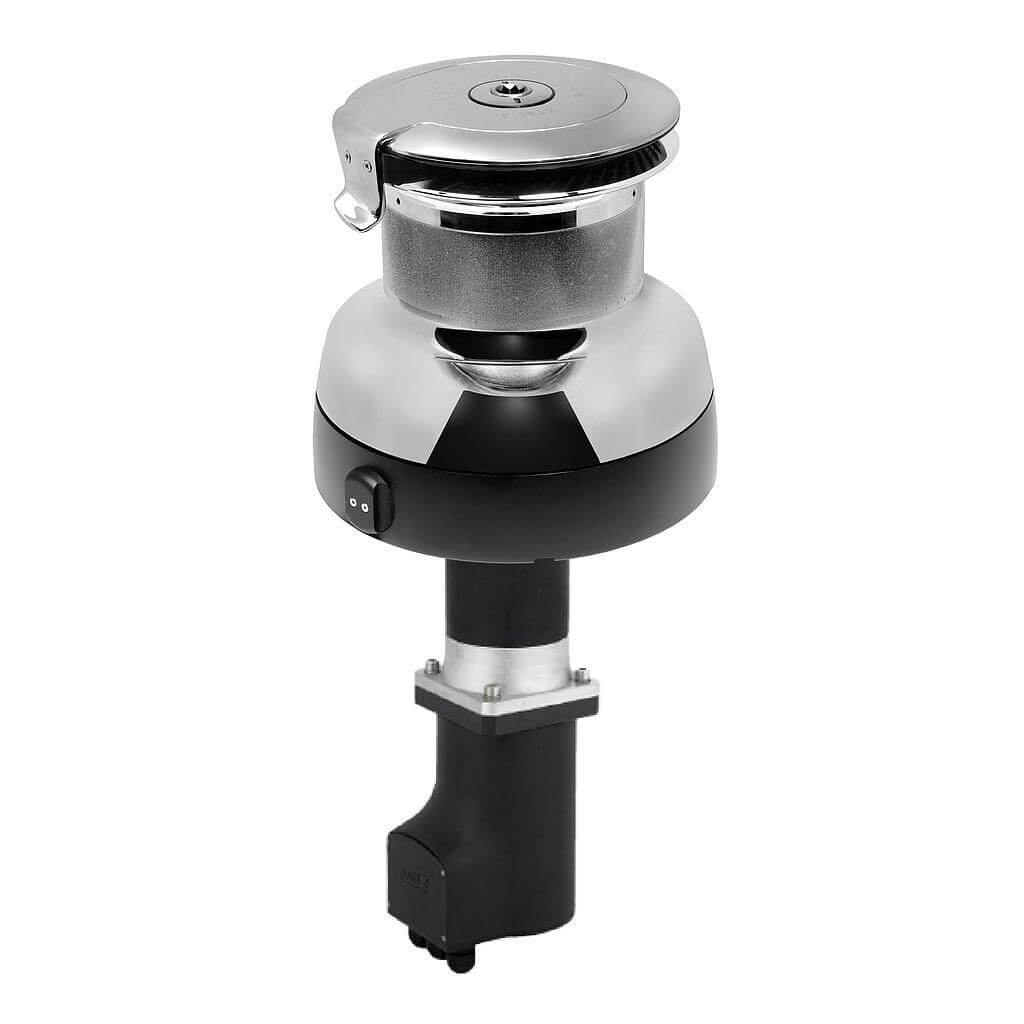

Antal 80 3-Speed Electric (Vertical) 24V Chromed Bronze Winch (3-Speed Manual)
Specifications for Antal 80 3-Speed Electric (Vertical) 24V Chromed Bronze Winch (3-Speed Manual)
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 22 |
| Cima consigliata - Ø Min (mm) | 12 |
| Electrics | |
| Tensione (V) | 24 |
| Potenza (W) | 2000 |
| Velocità (motore) | 3-Speed |
| Boat | |
| Stile | Vertical |
| Dimensions | |
| A (mm) | 449 |
| B (mm) | 160 |
| C (mm) | 115 |
| D (mm) | 339 |
| d (mm) | 210 |
| H (mm) | 326 |
| Ø base (mm) | 339 |
| Ø tamburo (mm) | 210 |
| Altezza (mm) | 326 |
| Lunghezza motore (mm) | 160 |
| Winches | |
| Rapporto ingranaggi 1 (X : 1) | 4.6 |
| Rapporto ingranaggi 2 (X : 1) | 12.6 |
| Rapporto ingranaggi 3 (X : 1) | 34.2 |
| Marce (manuale) | 3-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 147 |
| Recupero cima per giro - 2ª marcia (mm) | 53 |
| Recupero cima per giro - 3ª marcia (mm) | 20 |
| Velocità cima - 1ª marcia (m/min) | 22 |
| Velocità cima - 2ª marcia (m/min) | 8 |
| Velocità cima - 3ª marcia (m/min) | 3 |
| Rapporto potenza 1 (X : 1) | 11 |
| Rapporto potenza 2 (X : 1) | 30 |
| Rapporto potenza 3 (X : 1) | 81.4 |
| Tiro - Max (kg) | 4000 |
| Dettagli gonna | Black Aluminium |
| Material | |
| Materiale | Chromed Bronze |
| Undefined | |
| Taglia | 80 |
| Weight | |
| Peso (g) | 75000 |
| Garanzia (anni) | 3 |
Three Reduced Speed Electric Vertical Winch
These models maintain three speeds both in manual and in electric use; the push-button on the base starts the first gear (the fastest), second and third gear are automatically selected simply by reversing the rotation of the handle or pressing one of the two switches, one for the first and the third speed and one for the second.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
HORIZONTAL AND VERTICAL MOTORS - All the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.
MANUAL USE - Simply insert the handle to disconnect the gearbox-motor unit. Greater safety: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle. Greater efficiency: the gearbox-motor unit does not turn in manual use, avoiding needless friction.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 22 |
| Cima consigliata - Ø Min (mm) | 12 |
| Electrics | |
|---|---|
| Tensione (V) | 24 |
| Potenza (W) | 2000 |
| Velocità (motore) | 3-Speed |
| Boat | |
|---|---|
| Stile | Vertical |
| Dimensions | |
|---|---|
| A (mm) | 449 |
| B (mm) | 160 |
| C (mm) | 115 |
| D (mm) | 339 |
| d (mm) | 210 |
| H (mm) | 326 |
| Ø base (mm) | 339 |
| Ø tamburo (mm) | 210 |
| Altezza (mm) | 326 |
| Lunghezza motore (mm) | 160 |
| Winches | |
|---|---|
| Rapporto ingranaggi 1 (X : 1) | 4.6 |
| Rapporto ingranaggi 2 (X : 1) | 12.6 |
| Rapporto ingranaggi 3 (X : 1) | 34.2 |
| Marce (manuale) | 3-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 147 |
| Recupero cima per giro - 2ª marcia (mm) | 53 |
| Recupero cima per giro - 3ª marcia (mm) | 20 |
| Velocità cima - 1ª marcia (m/min) | 22 |
| Velocità cima - 2ª marcia (m/min) | 8 |
| Velocità cima - 3ª marcia (m/min) | 3 |
| Rapporto potenza 1 (X : 1) | 11 |
| Rapporto potenza 2 (X : 1) | 30 |
| Rapporto potenza 3 (X : 1) | 81.4 |
| Tiro - Max (kg) | 4000 |
| Dettagli gonna | Black Aluminium |
| Material | |
|---|---|
| Materiale | Chromed Bronze |
| Undefined | |
|---|---|
| Taglia | 80 |
| Weight | |
|---|---|
| Peso (g) | 75000 |
| Garanzia (anni) | 3 |
