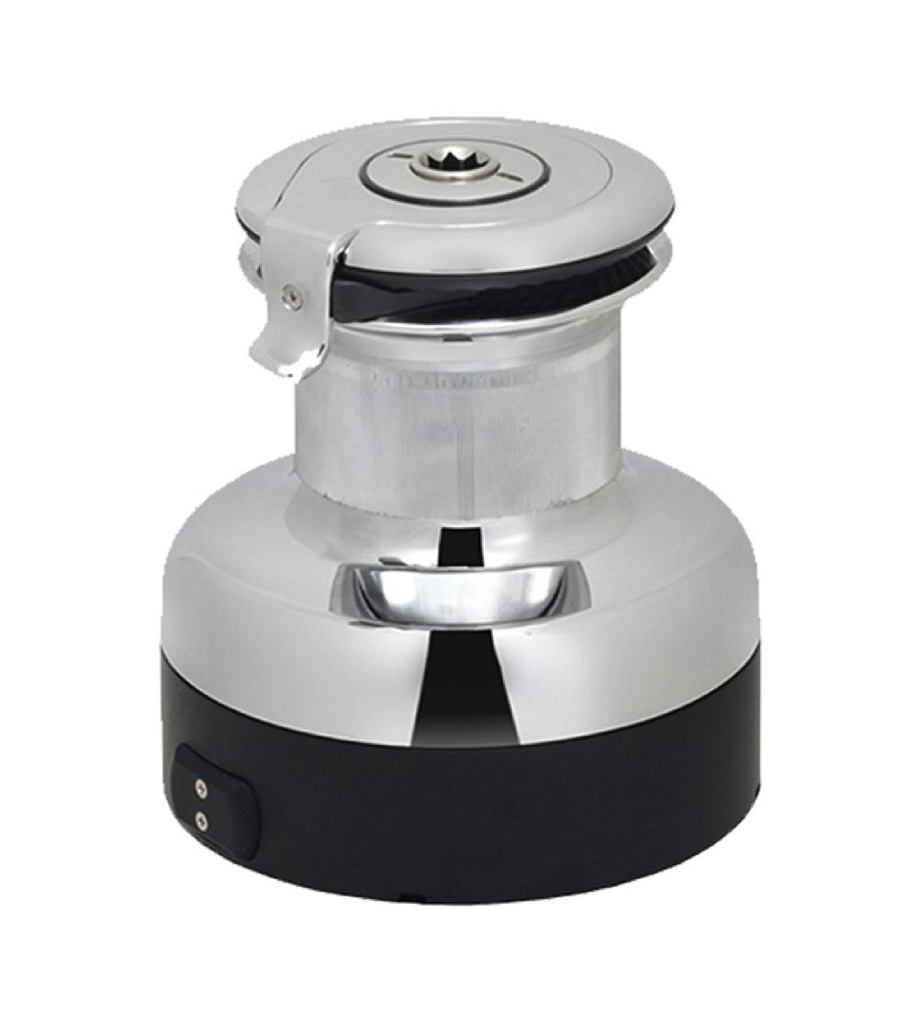

Specifications for Antal 62 3-Speed Self-Tailing Chromed Bronze Winch
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 16 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
| Stile | Self-Tailing |
| Dimensions | |
| Ø base (mm) | 224 |
| Ø tamburo (mm) | 120 |
| Altezza (mm) | 245 |
| Winches | |
| Rapporto ingranaggi 1 (X : 1) | 1.6 |
| Rapporto ingranaggi 2 (X : 1) | 4.3 |
| Rapporto ingranaggi 3 (X : 1) | 14.9 |
| Marce (manuale) | 3-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 241 |
| Recupero cima per giro - 2ª marcia (mm) | 89 |
| Recupero cima per giro - 3ª marcia (mm) | 26 |
| Rapporto potenza 1 (X : 1) | 6.6 |
| Rapporto potenza 2 (X : 1) | 17.8 |
| Rapporto potenza 3 (X : 1) | 62.1 |
| Material | |
| Materiale | Chromed Bronze |
| Undefined | |
| Taglia | 62 |
| Weight | |
| Peso (g) | 17600 |
| Garanzia (anni) | 3 |
Three Reduced Speed Winch
The push-button on the base starts the first gear (the fastest); second and third gear are automatically selected simply by reversing the rotation of the handle.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 16 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
|---|---|
| Stile | Self-Tailing |
| Dimensions | |
|---|---|
| Ø base (mm) | 224 |
| Ø tamburo (mm) | 120 |
| Altezza (mm) | 245 |
| Winches | |
|---|---|
| Rapporto ingranaggi 1 (X : 1) | 1.6 |
| Rapporto ingranaggi 2 (X : 1) | 4.3 |
| Rapporto ingranaggi 3 (X : 1) | 14.9 |
| Marce (manuale) | 3-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 241 |
| Recupero cima per giro - 2ª marcia (mm) | 89 |
| Recupero cima per giro - 3ª marcia (mm) | 26 |
| Rapporto potenza 1 (X : 1) | 6.6 |
| Rapporto potenza 2 (X : 1) | 17.8 |
| Rapporto potenza 3 (X : 1) | 62.1 |
| Material | |
|---|---|
| Materiale | Chromed Bronze |
| Undefined | |
|---|---|
| Taglia | 62 |
| Weight | |
|---|---|
| Peso (g) | 17600 |
| Garanzia (anni) | 3 |
