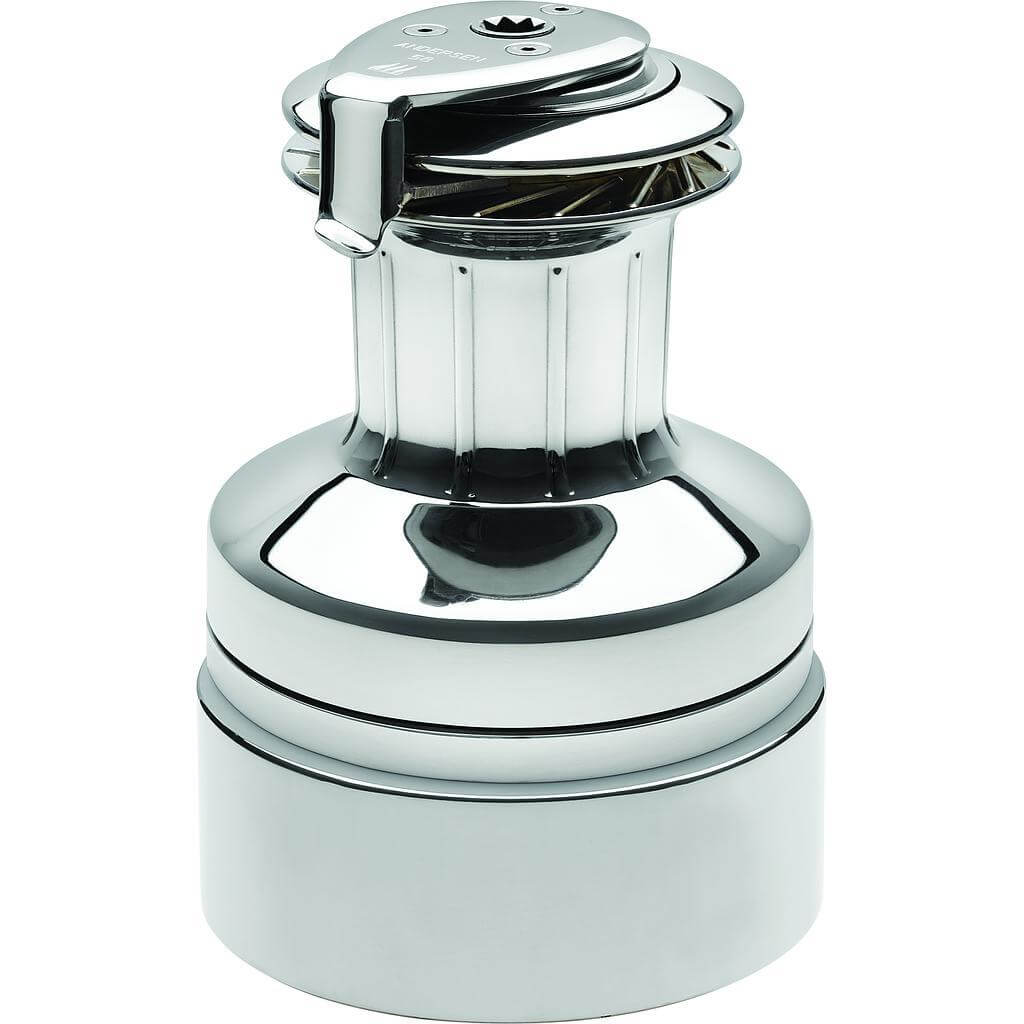

Andersen 58 Variable Speed Electric (Compact) 12V Stainless Steel Above Deck Winch (2-Speed Manual)
Specifications for Andersen 58 Variable Speed Electric (Compact) 12V Stainless Steel Above Deck Winch (2-Speed Manual)
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 18 |
| Cima consigliata - Ø Min (mm) | 8 |
| Electrics | |
| Tensione (V) | 12 |
| Velocità (motore) | Variable Speed |
| Boat | |
| Stile | Compact |
| Dimensions | |
| B (mm) | 230 |
| D (mm) | 155 |
| H (mm) | 266 |
| J (mm) | 85 |
| L (mm) | 198 |
| S (mm) | 254 |
| U (mm) | 40 - 75 |
| Ø base (mm) | 230 |
| Ø tamburo (mm) | 115 |
| Altezza (mm) | 266 |
| Altezza ingresso cima (mm) | 198 |
| Altezza motore (mm) | 85 |
| Lunghezza motore (mm) | 254 |
| Winches | |
| Rapporto ingranaggi 1 (X : 1) | 3.7 |
| Rapporto ingranaggi 2 (X : 1) | 13.1 |
| Marce (manuale) | 2-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 98 |
| Recupero cima per giro - 2ª marcia (mm) | 28 |
| Velocità cima - 1ª marcia (m/min) | 13 |
| Rapporto potenza 1 (X : 1) | 16 |
| Rapporto potenza 2 (X : 1) | 57.1 |
| Tiro - Max (kg) | 1380 |
| Dettagli gonna | Integrated |
| Material | |
| Materiale | Stainless Steel |
| Undefined | |
| Spessore del ponte Max (mm) | 28 |
| Taglia | 58 |
| Weight | |
| Peso (g) | 34000 |
| Garanzia (anni) | 2 |
|
Andersen - Product manual 58ST FS v2.0.F _ 62ST FS v2.0.F Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Compact Motor Above Deck Self Tailing Winches, Size 52 58 _ 62 - Paper size A3.pdf
Winch Mounting Dimension Templates - Paper size A3
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
Self-Tailing Electric Winches Compact Motor - Variable Speed, Above Deck
Ease of installation
The Andersen Compact Motor™ electric winch is available in two formats for either Above Deck or Below Deck motor placement. Motor gearbox and controller are integrated into one compact unit with no extra control box necessary. Simplified electrical installation requires just the connection of positive and negative power cables to the motor terminals and the connection of the push button using the included output cable.
Efficient, variable speed
The Andersen Compact Motor™ is a brushless DC motor carefully matched to a low profile planetary gearbox which requires less space for installation, and draws considerably less current than traditional motor/gearbox configurations. Available in 12 volt and 24 volt models, Compact Motor™ electric winches operate at variable speed in proportion to the pressure applied to the push button, for smooth and quiet operation.
Illuminated "intelligent" push button
Compact Motor™ winches are supplied with a push button with integrated LED which illuminates when power to the winch system is on. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to flash status codes that assist with trouble shooting in the event of overload or where other system protection intervention occurs. A cable for connection of the push button is included for convenient installation.
Manual operation
2-speed manual operation is always available as a backup; to winch beyond the pre-set maximum pull load (but below the winch Max Working Load) or just for the experience.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 18 |
| Cima consigliata - Ø Min (mm) | 8 |
| Electrics | |
|---|---|
| Tensione (V) | 12 |
| Velocità (motore) | Variable Speed |
| Boat | |
|---|---|
| Stile | Compact |
| Dimensions | |
|---|---|
| B (mm) | 230 |
| D (mm) | 155 |
| H (mm) | 266 |
| J (mm) | 85 |
| L (mm) | 198 |
| S (mm) | 254 |
| U (mm) | 40 - 75 |
| Ø base (mm) | 230 |
| Ø tamburo (mm) | 115 |
| Altezza (mm) | 266 |
| Altezza ingresso cima (mm) | 198 |
| Altezza motore (mm) | 85 |
| Lunghezza motore (mm) | 254 |
| Winches | |
|---|---|
| Rapporto ingranaggi 1 (X : 1) | 3.7 |
| Rapporto ingranaggi 2 (X : 1) | 13.1 |
| Marce (manuale) | 2-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 98 |
| Recupero cima per giro - 2ª marcia (mm) | 28 |
| Velocità cima - 1ª marcia (m/min) | 13 |
| Rapporto potenza 1 (X : 1) | 16 |
| Rapporto potenza 2 (X : 1) | 57.1 |
| Tiro - Max (kg) | 1380 |
| Dettagli gonna | Integrated |
| Material | |
|---|---|
| Materiale | Stainless Steel |
| Undefined | |
|---|---|
| Spessore del ponte Max (mm) | 28 |
| Taglia | 58 |
| Weight | |
|---|---|
| Peso (g) | 34000 |
| Garanzia (anni) | 2 |
