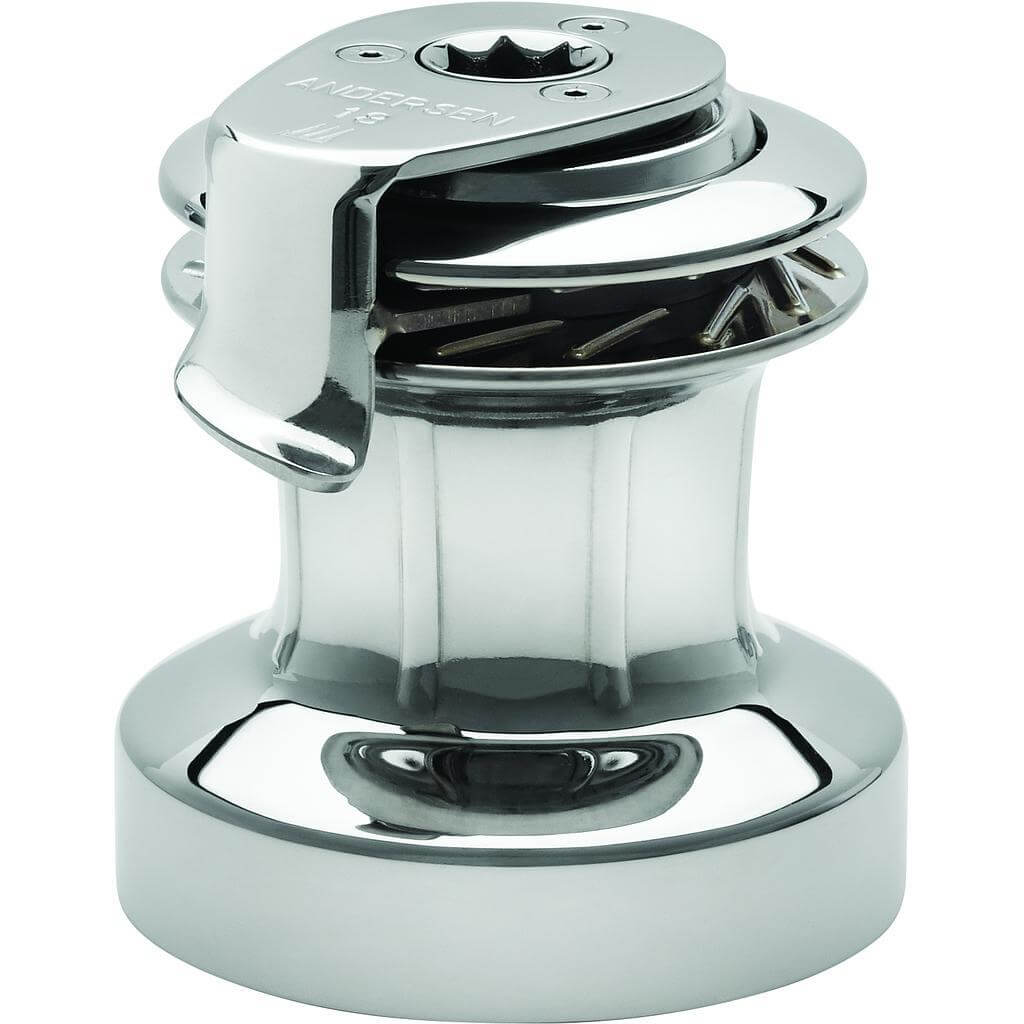

Specifications for Andersen 18 1-Speed Self-Tailing Stainless Steel Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| A (mm) | 70 |
| B (mm) | 120 |
| C (mm) | 133 |
| D (mm) | 50 |
| Base Ø (mm) | 120 |
| Drum Ø (mm) | 70 |
| Height (mm) | 133 |
| Line entry height (mm) | 50 |
| Winches | |
| Gear ratio 1 (X : 1) | 2.6 |
| Gears (Manual) | 1-Speed |
| Power ratio 1 (X : 1) | 18.8 |
| Material | |
| Material | Stainless Steel |
| Undefined | |
| Size | 18 |
| Weight | |
| Weight (g) | 3200 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 18ST v2.0 _ 18ST FS v2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 18 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
Full Stainless Self-Tailing winch featuring the exclusive stainless steel Power Rib™ drum for maximum power and extended line life. Andersen's exclusive self-tailing mechanism automatically accommodates a wide range of different sheet and halyard sizes allowing each winch to serve numerous onboard purposes. The drive shaft stripper arm, self-tailing jaws, drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 stainless steel resulting in a stunning, highly reflective winch.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
|---|---|
| Style | Self-Tailing |
| Dimensions | |
|---|---|
| A (mm) | 70 |
| B (mm) | 120 |
| C (mm) | 133 |
| D (mm) | 50 |
| Base Ø (mm) | 120 |
| Drum Ø (mm) | 70 |
| Height (mm) | 133 |
| Line entry height (mm) | 50 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 2.6 |
| Gears (Manual) | 1-Speed |
| Power ratio 1 (X : 1) | 18.8 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Undefined | |
|---|---|
| Size | 18 |
| Weight | |
|---|---|
| Weight (g) | 3200 |
