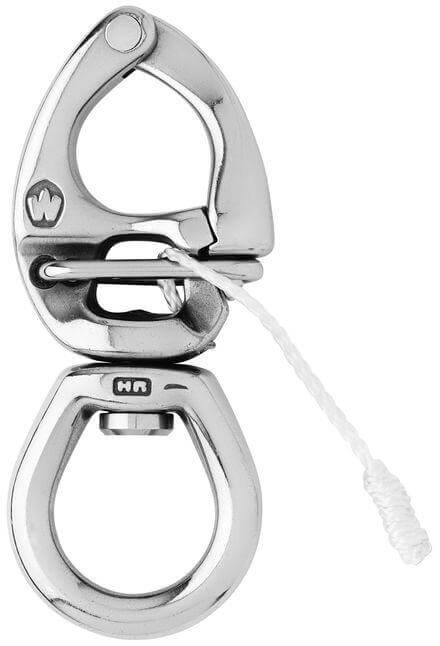

Specifications for Wichard Snap Shackle with Large Bail - SWL 2.4T
| Boat | |
|---|---|
| Style | Swivel Bail (Large) |
| Load | |
| Charge de travail (kg) | 2400 |
| Charge de rupture (kg) | 4000 |
| Dimensions | |
| A (mm) | 25 |
| B (mm) | 31 |
| Longueur totale (mm) | 120 |
| Material | |
| Matériau | Acier inoxydable |
| Material Grade | AISI 630 (17-4 / HR) |
| Compatibility | |
| Bail type | Large swivel eye |
| Weight | |
| Poids (g) | 271 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Wichard's Quick release snap shackles with large swiveling bail are perfect for attaching the spinnaker sheets or halyard. The shackle functions the quick release by pulling the lanyard supplied with the shackle, opening the catch. The swivel allows the shackle to rotate freely, whilst the large bail allows multiple lines to be attached or attachment of an additional shackle.
This range of shackles is producted with High Resistance (HR) grade stainless steel, a corrosion resistant hardened material favoured for marine environments.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Boat | |
|---|---|
| Style | Swivel Bail (Large) |
| Load | |
|---|---|
| Charge de travail (kg) | 2400 |
| Charge de rupture (kg) | 4000 |
| Dimensions | |
|---|---|
| A (mm) | 25 |
| B (mm) | 31 |
| Longueur totale (mm) | 120 |
| Material | |
|---|---|
| Matériau | Acier inoxydable |
| Material Grade | AISI 630 (17-4 / HR) |
| Compatibility | |
|---|---|
| Bail type | Large swivel eye |
| Weight | |
|---|---|
| Poids (g) | 271 |
