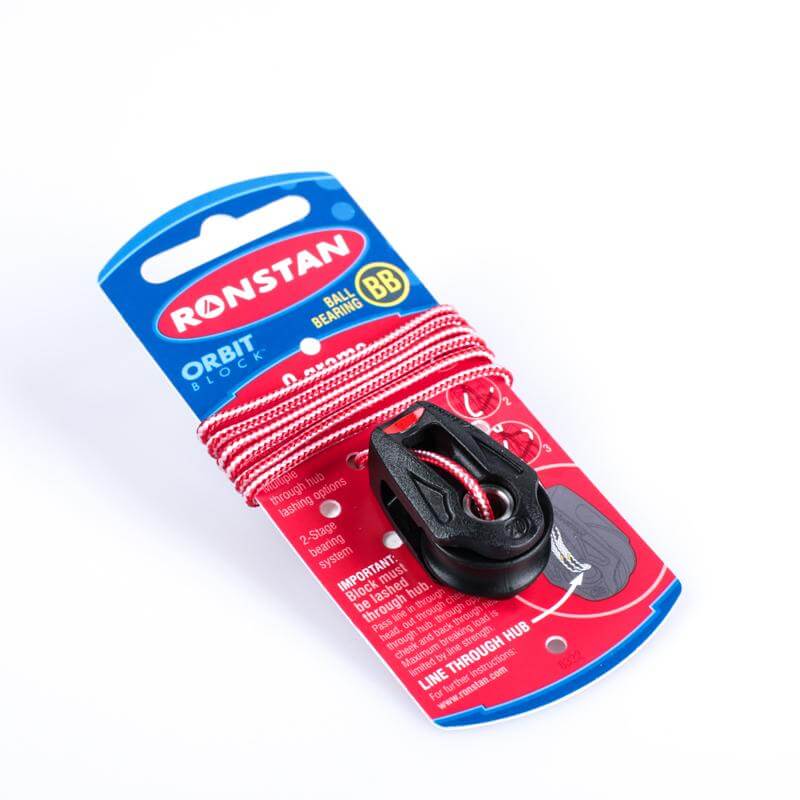

The incredible Series 20 Orbit Block™ is capable of loads up to 250kg (550lb) while weighing a mere 9 grams. It’s so light that it needs to be lashed down! The sheave is made of high compression strength carbon Acetal with Stainless steel bearings and nylon cheeks. The integrated stainless steel hub accepts a lashing upto 4mm and the block must be lashed through hub to achieve full SWL. N.B. SWL is dependent on the quality of the lashing!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 6 |
| Boat | |
|---|---|
| Taille bâteau recommandée - Max (ft) | 16 |
| Load | |
|---|---|
| Charge de travail (kg) | 250 |
| Charge de rupture (kg) | 550 |
| Blocks | |
|---|---|
| Bearing type | Ball bearing |
| Winch | Non |
| Dimensions | |
|---|---|
| Ø réas (mm) | 20 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Poids (g) | 9 |
