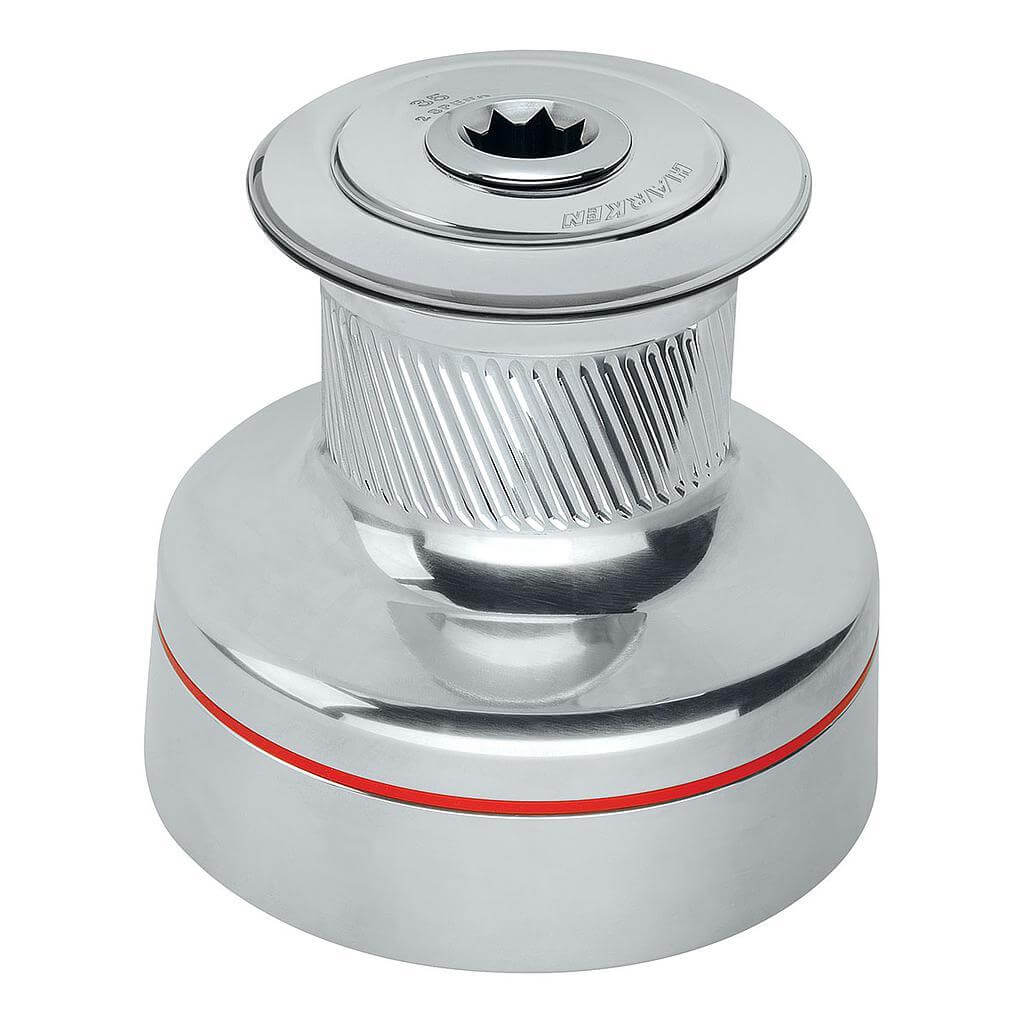

Specifications for Harken 35 2-Speed Plain-Top Radial All-Chrome Winch
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | N/A |
| Cordage recommandé – Ø Min (mm) | N/A |
| Boat | |
| Style | Plain-Top |
| Load | |
| Charge de travail (kg) | 650 |
| Dimensions | |
| A (mm) | 80 |
| B (mm) | 149 |
| C (mm) | 148 |
| D (mm) | 79 |
| Diamètre de l'embase | 149 |
| Ø tourelle (mm) | 80 |
| Hauteur (mm) | 148 |
| Hauteur d’entrée du cordage (mm) | 79 |
| Winches | |
| Vitesse 1 (X : 1) | 2,13 |
| Vitesse 2 (X : 1) | 5,65 |
| Vitesse (manuelle) | 2 vitesses |
| Puissance 1 (X : 1) | 13,5 |
| Puissance 2 (X : 1) | 35,9 |
| Material | |
| Matériau | Poupée chromée |
| Undefined | |
| Taille | 35 |
| Weight | |
| Poids (g) | 5200 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Chrome winches combine the elegance of highly-polished finishes with the dependable low-friction pulling power of Harken gearing systems. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. Plain-top winches are best handled by two crew—one to trim and one to tail the line.
