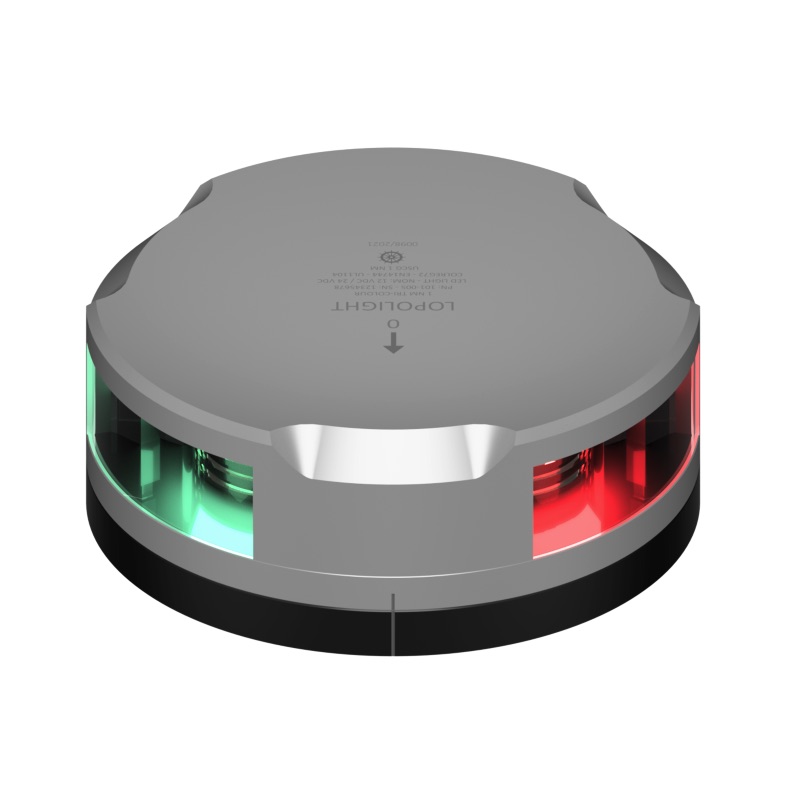

Lopolight 1NM Tri-colour – 0.7m Cable (Silver or Black Anodised)
[Port, Starboard & Stern – For sailing vessels under 12m]
The Lopolight 1NM Tri-colour light is a compact and efficient all-in-one navigation solution for sailing vessels under 12 metres. Combining port (red), starboard (green), and stern (white) sectors into a single fixture, it delivers 360° of navigation visibility in one rugged, low-profile unit. Each sector emits a sharp 112.5° (port/starboard) or 135° (stern) beam, visible up to 1 nautical mile, in full compliance with COLREG72.
Ideal for masthead installation, this light is constructed from anodised aluminium, available in both Silver and Black finishes. The unit is IP68 sealed with epoxy bonding to resist water ingress, vibration, and UV damage. A 0.7 metre marine-grade cable is pre-installed for simple integration with mast wiring.
Key Features:
- Suitable for sailing vessels under 12 metres
- Combines port, starboard, and stern sectors into one unit
- Compact flat-base, masthead-style mount
- Choice of Silver or Black anodised aluminium housing
- IP68 sealed for marine durability with epoxy-sealed electronics
- Supplied with 0.7m marine-grade cable
- Ultra-low power draw – ~2 W total at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
- Alternative versions available with integrated Windex attachment for wind direction indication
Specifications
| Colour* | Silver or Black |
| Connection | 0.7m cable |
| Dimensions (mm) | Ø92,5mm x 46mm |
| Operating temperature | -25°C to 55°C |
| Current draw (mA @ 12VDC) | 150 |
| Current draw (mA @ 24VDC) | 81 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Operating voltage (V) | 10-32 |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Water resistance | IP68 |
| Weight (g) | 450 |
