Horizontally mounted with 0.75m cable
Included in package:

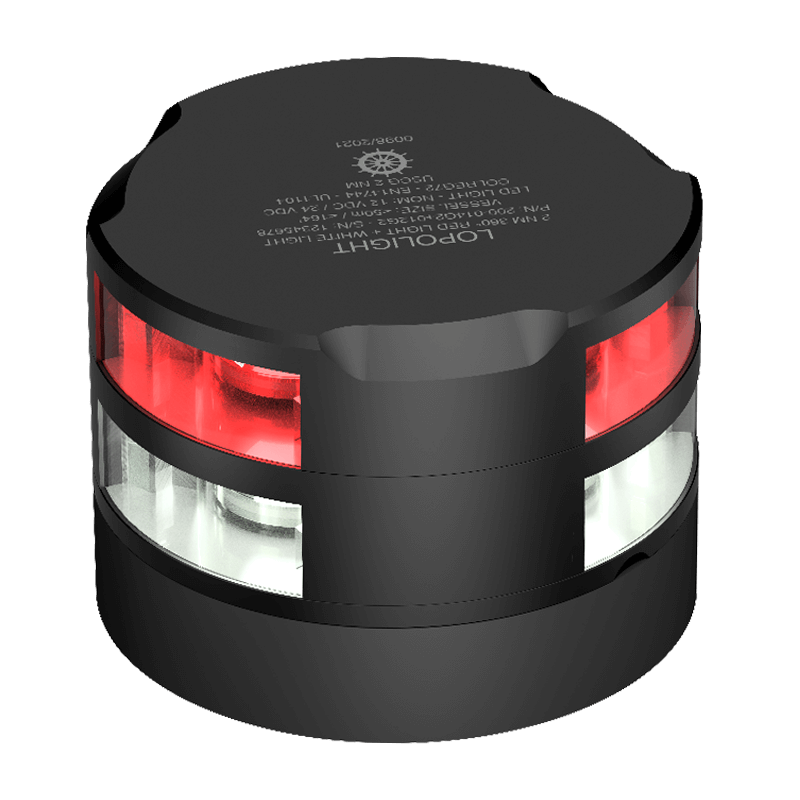

1 Navigation light
precabled with 0.75 meter shielded marine grade cable
Installation guide
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Boat size (m) | 20-50M ou 12-20M ou Under 12M |
| Connection | 0.7m cable |
| Dimensions (mm) | Ø92,5mm x 68mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 150 |
| Current draw (mA @ 24VDC) | 85 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 2.1 |
| Tension de fonctionnement | 10-32 |
| Matériau | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Garantie (année) | 5 year limited warranty |
| Résistant à l'eau | IP68 |
| Poids (g) | 1000 |
