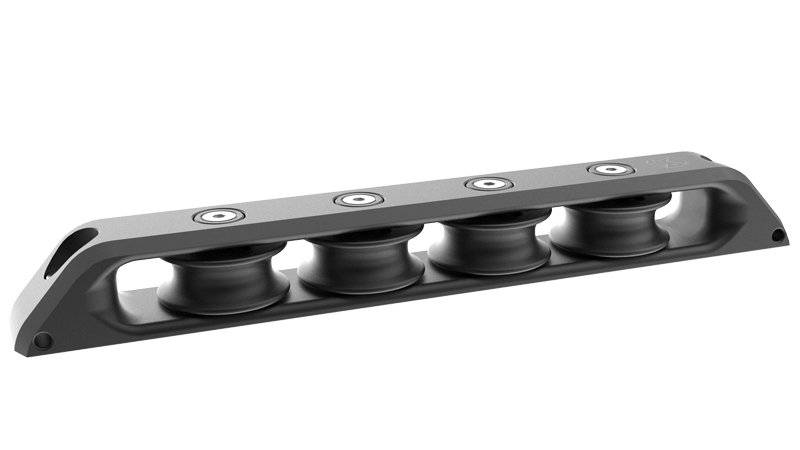

Specifications for UBI Maior Organiser 4 Sheaves 35mm, High Load, MWL 2500Kg
| Total width (mm) | 39 |
| Recommended line - Max Ø (mm) | 14 |
| Total height (mm) | 33 |
| Total length (mm) | 294 |
| Sheave Ø (mm) | 35 |
| Sideplate material | Aluminum |
| Sheave material | Aluminium |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| A (mm) | 294 |
| B (mm) | 39 |
| C (mm) | 33 |
| Weight (g) | 660 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
The UBI MAIOR standard range of organisers are available with sheave diameter of 35 or 55mm in groupings of 3, 4, 5 or 6 sheaves.
Screws not included.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total width (mm) | 39 |
| Recommended line - Max Ø (mm) | 14 |
| Total height (mm) | 33 |
| Total length (mm) | 294 |
| Sheave Ø (mm) | 35 |
| Sideplate material | Aluminum |
| Sheave material | Aluminium |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| A (mm) | 294 |
| B (mm) | 39 |
| C (mm) | 33 |
| Weight (g) | 660 |
