Mantagua NAVIPRO Compact 2 NM Tricolour Light
The Mantagua NAVIPRO Compact Range delivers professional-grade LED navigation lights in a sleek, low-profile design. Engineered for yachts, motorboats, and workboats up to 50 metres, these lights combine modern aesthetics with full COLREG compliance. The compact form factor makes them ideal where a discreet installation is required, while still ensuring long-range visibility and reliability.

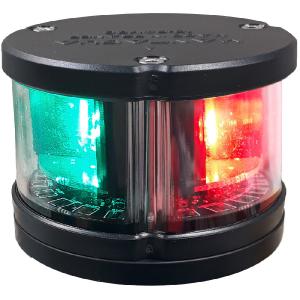

The NAVIPRO Compact 2 NM Tricolour Light combines port, starboard, and stern navigation lights into a single compact housing. With red (112.5° port), green (112.5° starboard), and white (135° stern) beams, it provides full COLREG-compliant coverage with a 2 nautical mile visibility range. By consolidating three lights into one fitting, it simplifies installation, reduces wiring, and ensures a clean, modern appearance on deck.
Like all NAVIPRO Compact units, the tricolour light is Wheelmark certified (MED 60427/A0) and CE approved, guaranteeing compliance with international safety standards. It is built with IP67 waterproofing, UV-resistant housing, and robust LED technology, offering minimal power draw, high reliability, and long service life. Tested to avoid interference with onboard electronics such as VHF and AIS, it delivers professional-grade performance for modern yachts and workboats.
Key features:
- Part of the low-profile NAVIPRO Compact Range
- Combined red (port), green (starboard), and white (stern) beams
- 2 NM visibility range (COLREG compliant)
- For yachts, motorboats, and workboats up to 50 m
- Wheelmark certified (MED 60427/A0) and CE approved
- Compact design reduces wiring and simplifies installation
- IP67 watertight and UV-resistant housing
- LED technology: low power draw, long service life
- Tested for zero interference with VHF and AIS systems
Spécifications
| Beam angle (degrees) | 112.5 ou 135 |
| Width (mm) | 69 |
| Connection | 1m Cable |
| Boat size (m) | 12-20M |
| Luminous Intensity (cd) | >5.4 |
| Visibility (NM) | 2 |
| Power (W) | 3.24 |
| Tension de fonctionnement | 10-30 |
| Hauteur (mm) | 50 |
| Garantie (année) | 2 |
| Résistant à l'eau | IP67 |
| Poids (g) | 190 |
| Certification | WHEELMARK 60427/A0 MED |
