Mantagua Classical Combined Sidelight (Green/Red 112.5°) 1 NM
The Mantagua Classical Combined Sidelight is designed specifically for sailors who value traditional styling. With its timeless look, it is an ideal navigation light for classic yachts and traditionally styled boats up to 12 metres. Delivering green (starboard) and red (port) signals at 112.5° each with a visibility of 1 nautical mile, it fully complies with COLREG requirements.
Part of the Classic Range, these lights are intended for owners seeking authenticity and elegance rather than modern design. While Mantagua’s NaviPro Range offers a more contemporary, high-performance solution for modern yachts, the Classical Range is the go-to choice where original aesthetics matter most.
The combined format houses both port and starboard lights in a single compact unit, simplifying installation. With efficient LED technology, the light delivers low power consumption, long service life, and reliable performance. A watertight, UV-resistant housing and horizontal base mount ensure it withstands harsh marine conditions.
Key features:
- Classic aesthetic – ideal for traditional yachts
- Combined green (starboard) and red (port) LEDs
- 112.5° each side, 1 NM visibility range (COLREG compliant)
- For boats up to 12 m
- Original look for heritage or classically styled vessels
- LED efficiency: low power draw, long service life
- Compact, simplified installation
- Horizontal base mounting
- Watertight and UV-resistant design

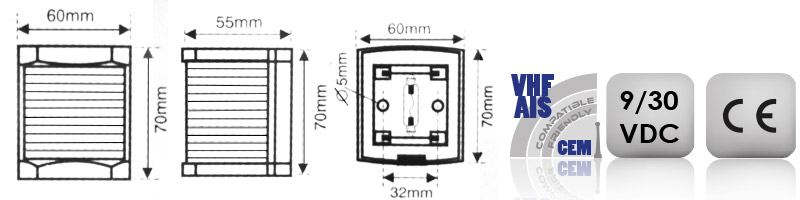

Specifications
| Beam angle (degrees) | 112.5 |
| Width (mm) | 55 |
| Luminous Intensity (cd) | >1.1 |
| Length (mm) | 60 |
| Visibility (NM) | 1 |
| Power (W) | 1.2 |
| Operating voltage (V) | 9-30 |
| Height (mm) | 70 |
| Warranty (yrs) | 2 |
| Weight (g) | 110 |
