Lopolight 2NM Combined Sidelight – Horizontal Mount (Upside-Down), 2.5m Cable (Silver Anodised)
[For vessels under 20m – LED navigation light]
The Lopolight 2NM Combined Sidelight – Upside-Down Mount is designed for vessels under 20 metres where navigation lights need to be installed beneath a horizontal surface such as a bridge deck, pulpit, or hardtop overhang. It combines port (red) and starboard (green) sectors into a single compact housing, each projecting a 112.5° beam visible to 2 nautical miles.
Available exclusively in silver anodised aluminium, this model is rugged, corrosion-resistant, and built for durability. Rated IP68, the epoxy-sealed electronics ensure long-term protection against saltwater, vibration, and UV exposure.
The 2.5-metre marine-grade cable is pre-installed for straightforward connection to the vessel’s wiring system.
Key Features:
- Suitable for vessels under 20 metres

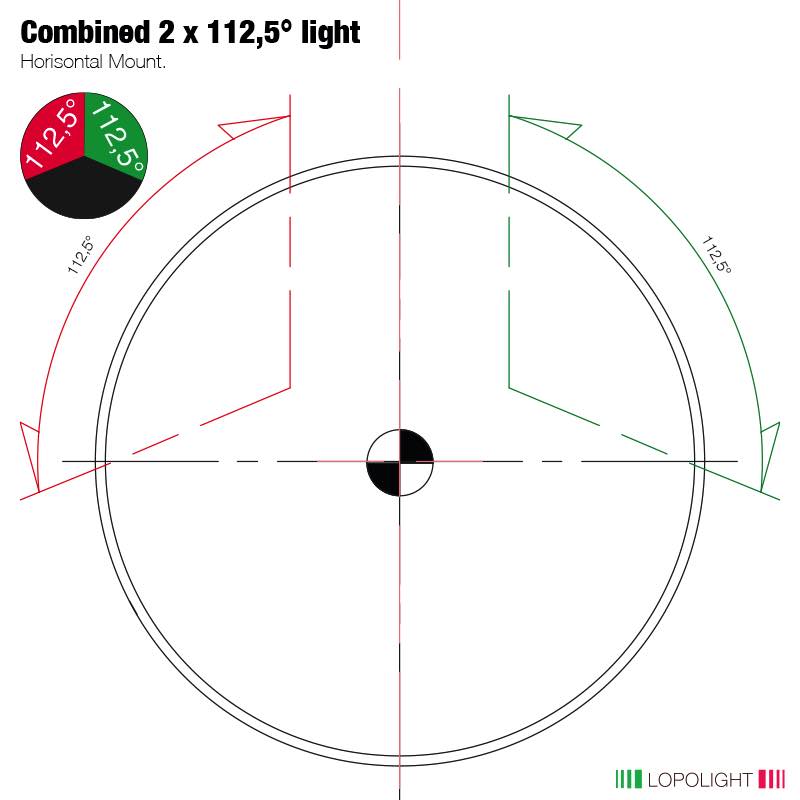

- Combined port and starboard sidelights (112.5° each, visible to 2NM)
- Upside-down horizontal mount – ideal for mounting beneath decks or structures
- Available in Silver anodised aluminium housing only
- IP68 sealed with epoxy-filled electronics for marine-grade durability
- Supplied with 2.5m marine-grade cable
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
- Alternative versions available: standard horizontal mount model in Silver or Black anodised aluminium
Spécifications
| Connection | 2.5m cable |
| Dimensions (mm) | Ø92,5mm x 46mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 163 |
| Current draw (mA @ 24VDC) | 90 |
| Boat size (m) | 12-20M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 2.2 |
| Tension de fonctionnement | 10-32 |
| Matériau | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Garantie (année) | 5 year limited warranty |
| Résistant à l'eau | IP68 |
| Poids (g) | 650 |
