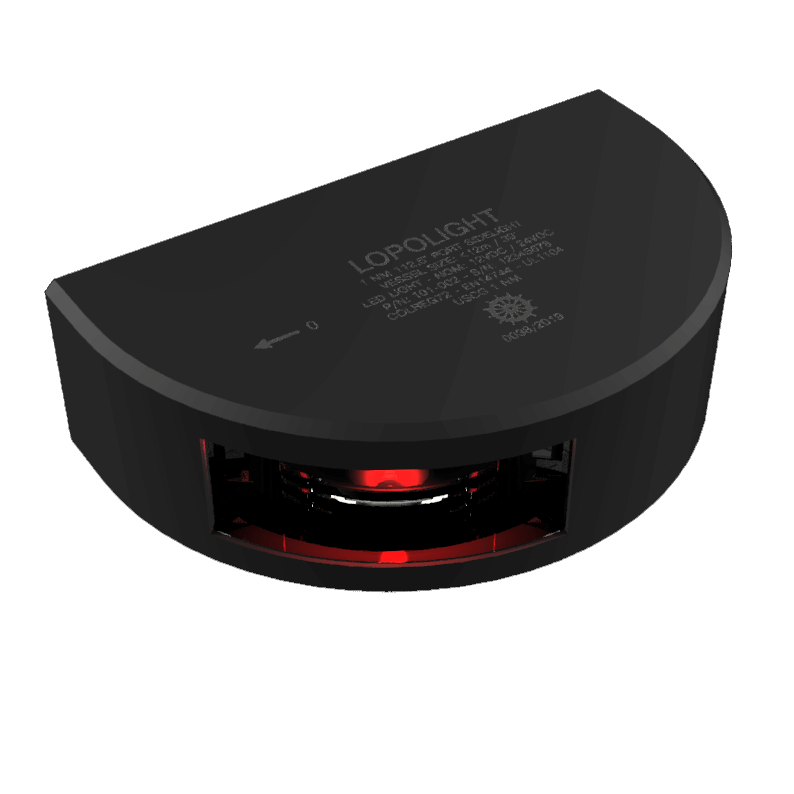

Lopolight 1NM 112.5° Port Sidelight – SUB Version, Black Anodised
[Extreme waterproofing – for vessels under 12m]
The Lopolight 1NM Port Sidelight (SUB) is a high-performance navigation light built for challenging marine environments where standard waterproofing isn't enough. Designed for vessels under 12 metres, it delivers a precise 112.5° red sector with 1NM visibility, compliant with all major standards.
This SUB variant is vacuum-potted to create a fully sealed, pressure-tolerant interior. Unlike traditional sealed units, this process provides IP68+ protection, allowing the light to operate reliably even under full submersion and in high-vibration conditions.
Crafted from black anodised aluminium, the housing is tough, corrosion-resistant, and visually unobtrusive. The unit is supplied with a 6-metre marine-grade cable, ready for flexible installation in exposed or hard-to-reach locations.
Key Features:
- SUB model with IP68+ waterproofing, suitable for submersion
- Vacuum-potted interior for total sealing and mechanical protection
- Emits 112.5° red light, visible to 1NM
- Rugged black anodised aluminium housing
- Supplied with 6m marine-grade cable
- Low power draw – ~1 W at 10–32 V
- Fully certified: COLREG72, EN14744, USCG, and beyond
- Ideal for exposed or high-risk installations where failure is not an option
Spezifikationen
| Connection | 2.5m cable |
| Dimensions (mm) | 92,5 x 28 x 49,7 |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 60 |
| Current draw (mA @ 24VDC) | 32 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >1.2 |
| Power supply type | dc. |
| Sichtweite (NM) | 1 |
| Leistung (W) | 1.1 |
| Spannung unter Betrieb | 10-32 |
| Material | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Wasserdichtigkeit | IP68 |
| Gewicht (g) | 390 |
