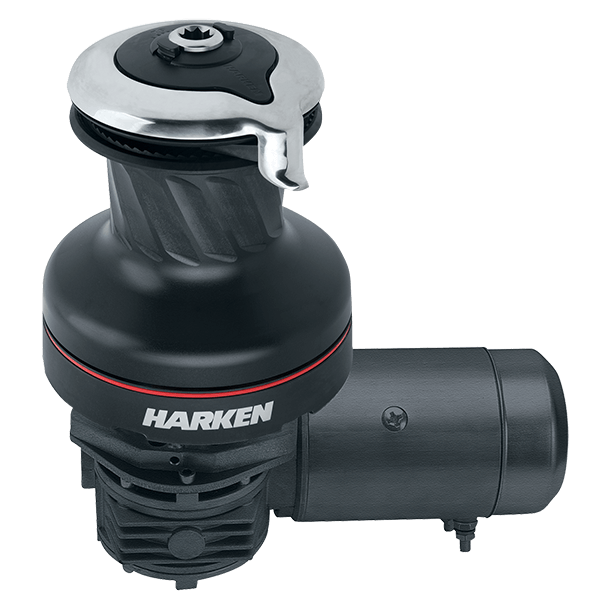

Harken 60 3-Speed Electric (Horizontal) 24V Aluminium Radial Winch (3-Speed Manual)

0.00 €
0% Off
SKU:
N/A
Brand: Harken

30-day money-back

 14-day returns

 Express shipping available

Share :

Electric Self-Tailing Radial Aluminium Winch

Electric winches allow crew to trim any size sail with the push of a button. Choices include 1, 2-, and 3-speeds, in self-tailing, shaped or sandblasted grips, standard or wide drums. Available in aluminum, chrome, aluminum/stainless, stainless steel, or bronze, in 12- or 24-volt. Energy-efficient motors accomplish more work per unit of electricity consumed. Motors attach to central drive shaft and drive through winch gears for mechanical advantage.

Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads and stress-free seasonal maintenance.

Aluminum winches are designed for sailors who want lightweight, extremely strong winches with plenty of power.

Specifications

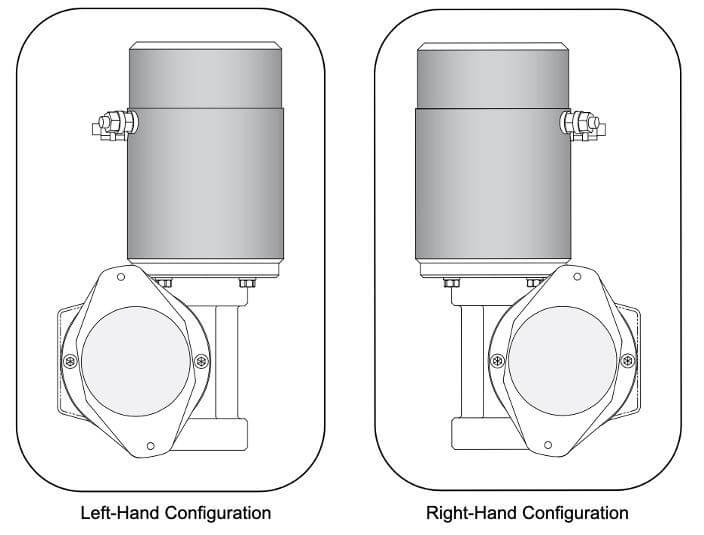

Mount Right-Hand Mount or Left-Hand Mount
Recommended line - Max Ø (mm) 16
Recommended line - Min Ø (mm) 8
Skirt Details Black Plastic
Size 60
Style Horizontal
Power (W) 2000
Deck thickness Max (mm) 69
Voltage (V) 24
Material Aluminium
Line recovery per rotation - 1st gear (mm) 173
Line recovery per rotation - 2nd gear (mm) 79
Line recovery per rotation - 3rd gear (mm) 26
Base Ø (mm) 236
Drum Ø (mm) 121
Height (mm) 253
Line entry height (mm) 116
Motor Depth (mm) 181
Motor Length (mm) 244
Gears (Manual) 3-Speed
Warranty (yrs) 2
A (mm) 121
B (mm) 236
C (mm) 253
D (mm) 116
E (mm) 69
F (mm) 181
G (mm) 244
Speed (Motor) 3-Speed
Gear ratio 1 (X : 1) 2.2
Gear ratio 2 (X : 1) 4.8
Gear ratio 3 (X : 1) 14.4
Power ratio 1 (X : 1) 9.2
Power ratio 2 (X : 1) 20.3
Power ratio 3 (X : 1) 61
Pulling load - Max (kg) 1800
Line speed - 1st gear (m/min) 46.8
Line speed - 2nd gear (m/min) 21.4
Line speed - 3rd gear (m/min) 7.1
Weight (g) 23200
