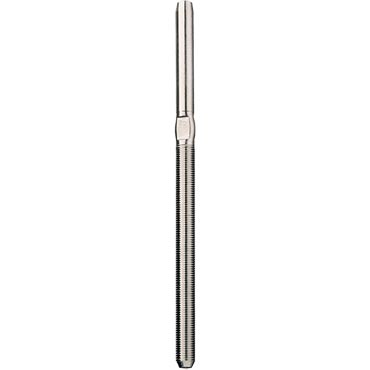

Specifications for Ronstan Type 1 Swage Terminal, 8mm (5/16") Wire, 1/2” Thread
| Suits Ronstan turnbuckle | RF1480-08 |
| Thread size | 1/2" UNF |
| Diamètre de câble (mm) | 8 |
| A (mm) | 14 |
| B (mm) | 88.5 |
| C (mm) | 263 |
| D (mm) | 143 |
| E (mm) | 16.1 |
| Poids (g) | 258 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Features:
B.L.=5410kg (11900lb)
Applications:
For wire end termination to suit metric wire
Materials:
Grade 316 stainless steel
Product information:
Threaded swage terminals up to and including 7/8" UNF have rolled right hand threads to maximise strength.
