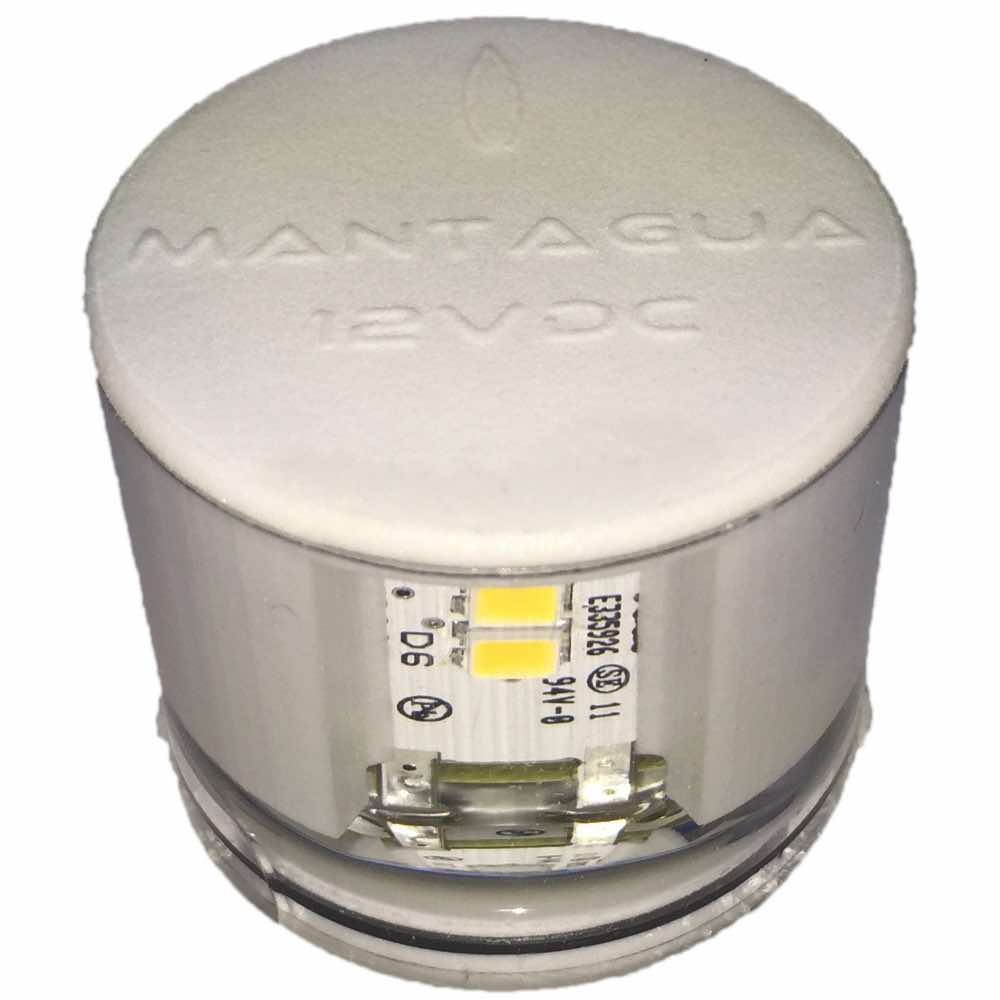

Mantagua TINY 2 NM Anchor Light – Horizontal (White 360°)
The Mantagua TINY Range is engineered for small yachts, day boats, and racing yachts under 12 metres, delivering ultra-compact and lightweight LED navigation lights that prioritise efficiency, simplicity, and reliability. Designed for sailors seeking professional performance in the smallest possible form, the TINY lights offer full COLREG compliance with exceptional durability.

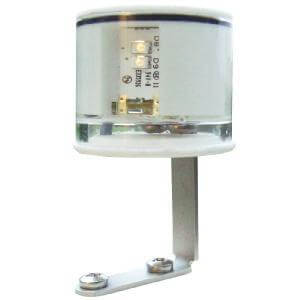

The TINY 2 NM Anchor Light provides a 360° all-round white beam with a 2 nautical mile visibility range, ensuring clear and compliant illumination when the vessel is at anchor. Its horizontal mounting configuration makes it ideally suited for masthead installation, providing excellent all-round visibility with minimal windage and weight — a key advantage for smaller sailing yachts and race boats.
The light is fully resin-sealed, offering complete protection against vibration, impact, and saltwater ingress. Rated IP67 waterproof, it is built to withstand continuous outdoor exposure while remaining maintenance-free. Operating on 12 VDC, the light consumes just 1.8 W, making it exceptionally efficient and ideal for boats with limited battery capacity.
Supplied with 15 metres of pre-fitted cable, the TINY Anchor Light is easy to install, even when cabling up a mast or through confined spaces. It is also fully VHF/AIS compatible, ensuring no interference with onboard electronics or communication systems.
Key features:
- Compact horizontal-mount all-round LED anchor light for boats under 12 m
- 360° white beam, 2 NM visibility (COLREG compliant)
- Fully epoxy resin-sealed – waterproof, vibration-proof, and shock-resistant
- Ultra-lightweight and aerodynamic masthead design
- IP67 waterproof, UV and impact resistant
- Operating voltage: 12 VDC
- Extremely low power draw (1.8 W) – ideal for battery-powered systems
- Supplied with 15 m of cable for simple masthead installation
- VHF/AIS friendly – no interference with onboard systems

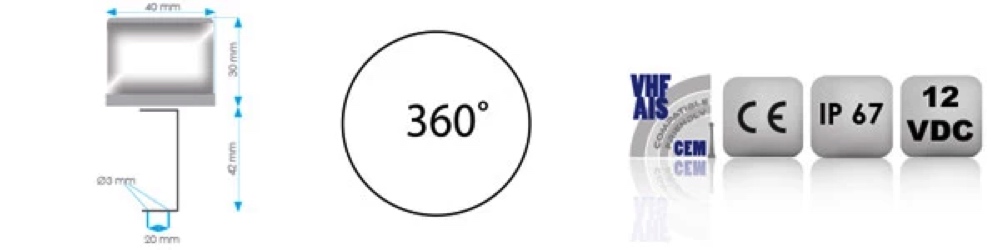

Spécifications
| Beam angle (degrees) | 360 |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 1.8 |
| Ø Extérieur (mm) | 40 |
| Tension de fonctionnement | 12 |
| Matériau | Epoxy resin |
| Hauteur (mm) | 30 |
| Garantie (année) | 2 |
| Résistant à l'eau | IP67 |
| Poids (g) | 60 |
