Lopolight 2nm 112.5° Port sidelight, horizontal mount

329,74 313,25
5% Off
SKU:
N/A
Shipping Info

Garantie de remboursement de 30 jours

 Retours sous 14 jours

 Expédition express disponible

Share :

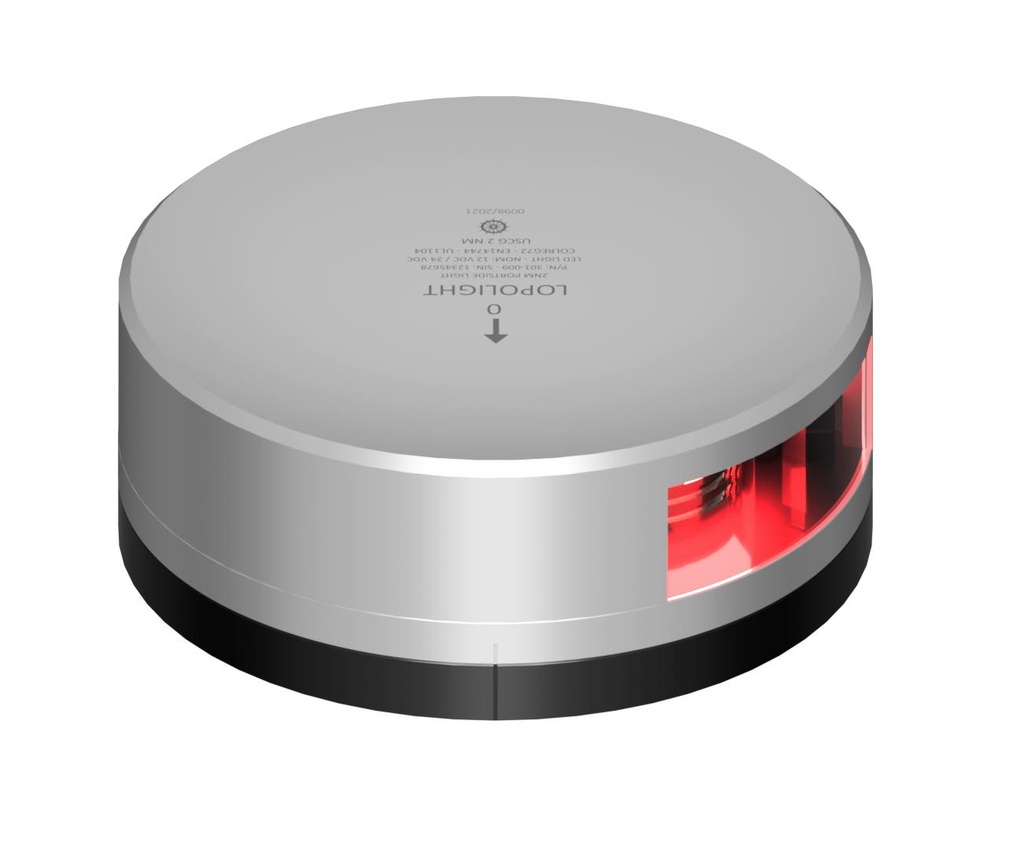

Lopolight 2NM 112.5° Port Sidelight – Horizontal Mount, 2.5m Cable (Silver or Black Anodised)

[For vessels under 20m – LED navigation light]


The Lopolight 2NM Port Sidelight in horizontal mount configuration provides precise and compliant portside visibility for vessels under 20 metres. Emitting a crisp 112.5° red beam visible to 2 nautical miles, it is designed for installation on decks, cabin coamings, or other horizontal surfaces.

Available in Silver or Black anodised aluminium finishes, the light is robust, corrosion-resistant, and compact. Rated IP68, the sealed housing and epoxy-filled electronics ensure long-lasting protection against saltwater, vibration, and UV damage.

The 2.5-metre marine-grade cable provides a standard-length connection suitable for typical installations.

Key Features:

  • Suitable for vessels under 20 metres
  • 112.5° red beam, visible to 2NM
  • Horizontal mount – ideal for deck, cabin, or coaming installation
  • Available in Silver or Black anodised aluminium housing
  • IP68 sealed with epoxy-filled electronics for marine durability
  • Supplied with 2.5m marine-grade cable
  • Low power draw – ~2 W at 10–32 V
  • Fully compliant with COLREG72, EN14744, and USCG standards
  • Alternative version available with 6m cable connection

Spécifications

Boat size (m) 20-50M ou 12-20M ou Under 12M
Couleur Argent ou Noir
Matériau Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane ou Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Connection 2.5m cable
Dimensions (mm) Ø92,5mm x 46mm
Operating temperature -25°C to 55°C
Feed wire gauge Min 0.5mm2 AWG22
Current draw (mA @ 12VDC) 90
Current draw (mA @ 24VDC) 50
Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Luminous Intensity (cd) >5.4
Power supply type dc.
Visibility (NM) 2
Power (W) 1,2
Tension de fonctionnement 10-32
Garantie (année) 5 year limited warranty
Résistant à l'eau IP68
Poids (g) 570
