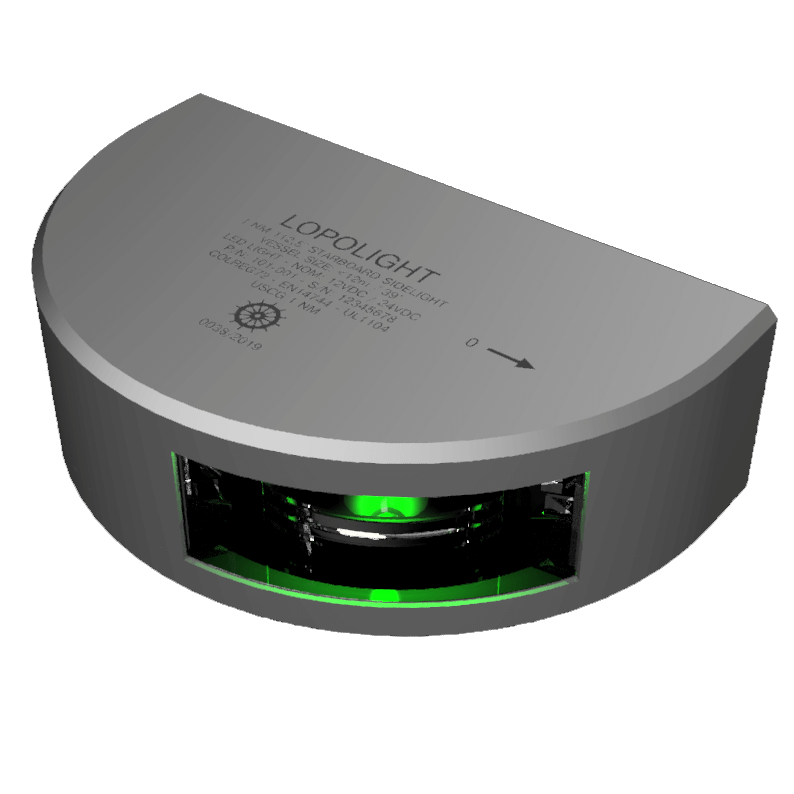

Lopolight 1NM 112.5° Starboard Sidelight – 2.5m Cable (Silver or Black Anodised)
[For vessels under 12m – LED navigation light]
The Lopolight 1NM Starboard Sidelight is a compact, energy-efficient LED navigation light designed specifically for vessels under 12 metres. Emitting a precise 112.5° green sector and visible up to 1 nautical mile, it fully complies with COLREG72 requirements for recreational and small commercial boats.
Built from anodised aluminium, this light is available in a choice of Silver or Black finish, blending seamlessly with modern yacht aesthetics. The rugged housing is IP68-rated, with sealed electronics and epoxy bonding to withstand spray, washdown, and heavy weather exposure.
A pre-installed 2.5 metre marine-grade cable ensures easy installation and long-term reliability. The unit’s compact vertical-mount design makes it ideal for narrow spaces near the bow.
Key Features:
- Suitable for vessels under 12 metres
- LED sidelight with 112.5° green output, visible to 1NM
- IP68 sealed for dependable marine durability
- Choice of Silver or Black anodised aluminium housing
- Low power consumption – draws just ~1 W at 10–32 V
- Includes 2.5m cable for straightforward installation
- Fully compliant with COLREG72, EN14744, and USCG standards
- Weight: 0.39 kg
- Alternatives available with 6m cable connection and SUB (extreme waterproofing) versions
Spezifikationen
Farbe | Silber oder Schwarz |
Connection | 2.5m cable |
Dimensions (mm) | 92,5 x 28 x 49,7 |
Operating temperature | -25°C to 55°C |
Feed wire gauge Min | 0.5mm2 AWG22 |
Current draw (mA @ 12VDC) | 66 |
Current draw (mA @ 24VDC) | 34 |
Boat size (m) | Under 12M |
Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
Luminous Intensity (cd) | >1.2 |
Power supply type | dc. |
Sichtweite (NM) | 1 |
Leistung (W) | 1.1 |
Spannung unter Betrieb | 10-32 |
Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
Wasserdichtigkeit | IP68 |
Gewicht (g) | 390 |
