KA-KBO15-FB_Karver Drawing Foot Block_001.PDF
Karver KBO15 Foot Block Technical Drawing
|
|
|
|
KA-KBO15-FB_Karver 2D Drawing Foot Block_001.DWG
Karver KBO15 2D Foot Block Technical Drawing
|
|
|
|
KA-KBO15-FB_Karver 3D Drawing Foot Block_001.IGS
Karver KBO15 3D Foot Block Technical Drawing
|

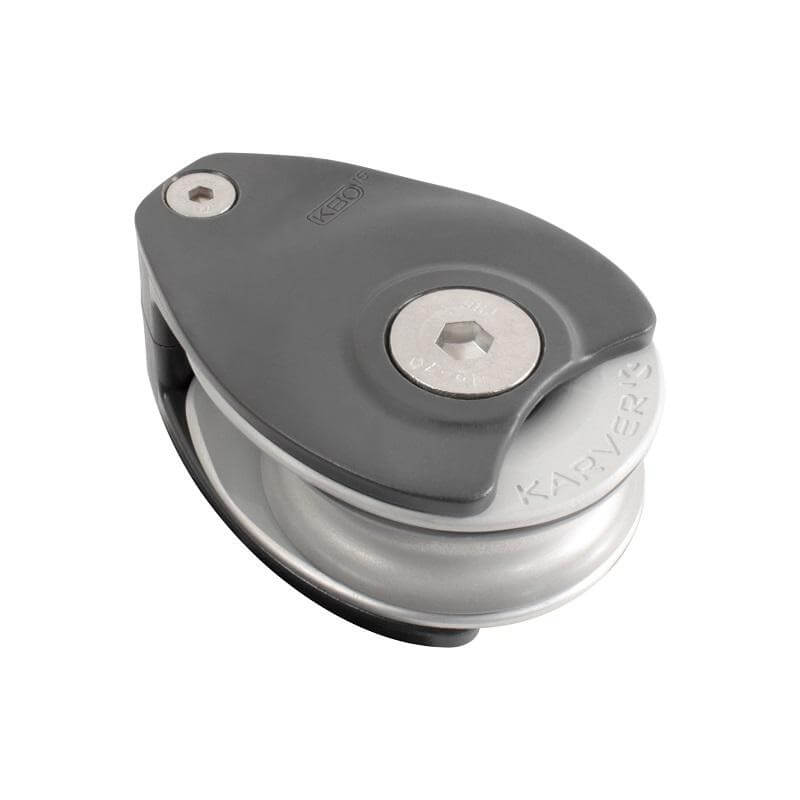

The Karver KBO Foot block range takes the size and weight advantages of the KBO lash blocks and adapts them for bolting to the deck. From the KBO10 to KBO20, the footblock is secured to the deck with a single bolt through the centre of the block and another at the back of the block to prevent rotation (bolts included). The cheeks are made from aluminium and the central roller bearings are Peek.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Cordage recommandé – Ø Max (mm) | 14 |
| Ø réas (mm) | 63 |
| Winch | Non |
| Charge de travail (kg) | 1800 |
| Charge de rupture (kg) | 3600 |
| Poids (g) | 196 |
