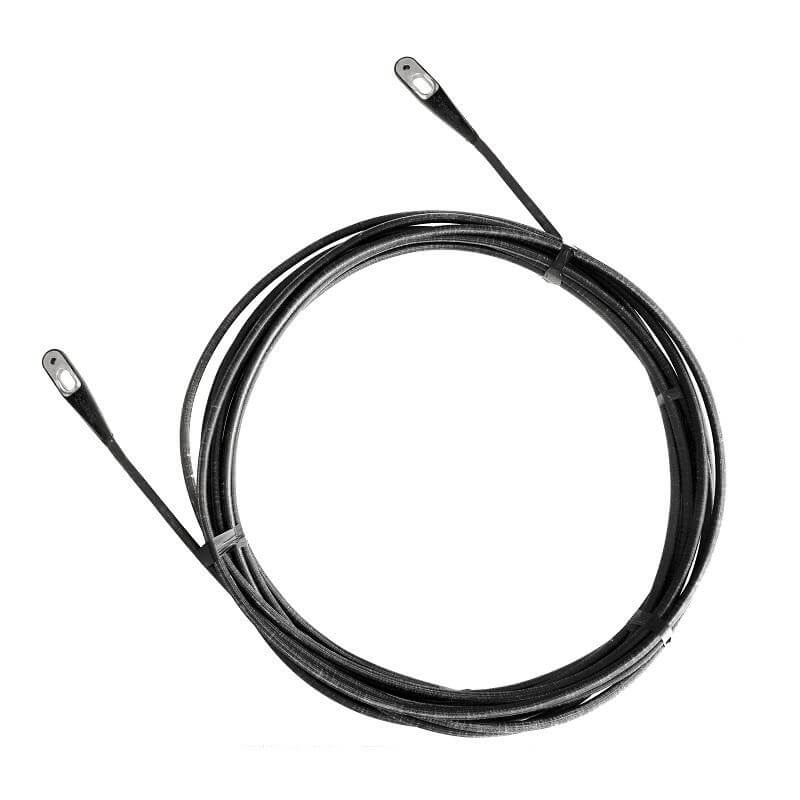

The Armare range of standard PBO, SK99 and K49 torsional cables have been specifically designed for either bottom-up or Top-down applications. Top-down cables have larger diameters relative to the same length bottom-up cable to handle the additional torsional loads. The K49 core provides an excellent all-round, cost effective cable for cruising code zeros and asymmetrics and also for structural furling forestays. Armare’s multi-layered, braided covers provide excellent torsional performance plus abrasion resistance and every cable comes with a pinned termination at the upper / lower ends to interface with the swivel / Drum.
Spécifications
| Matériau de l'âme | K49 |
| Diamètre de câble (mm) | 18,7 |
| Ø axe de la terminaison (mm) | Ø axe maxi 25 |
| Longueur de câble (mm) | 24000 |
| Largeur terminaison (mm) | 18,5 |
| Equivalent dash | 22 |
| EA (MN) | 13,7 |
| Référence de la terminaison | AT3 |
| Poids du câble (g) | 8200 |
| Charge de travail (kg) | 5000 |
| Charge de rupture (kg) | 20000 |
