Specifications for MORFRAC morfring Ø 15 mm - Low friction ring
| Largeur totale (mm) | 7 |
| Cordage recommandé – Ø Max (mm) | 4 |
| Ø Intérieur (mm) | 6 |
| Ø Extérieur (mm) | 15 |
| Ø cordage max surface extérieur de l'anneau (mm) | 4 |
| Charge de travail (kg) | 250 |
| Charge de rupture (kg) | 500 |
| A (mm) | 15 |
| B (mm) | 6 |
| C (mm) | 7 |
| Poids (g) | 1 |

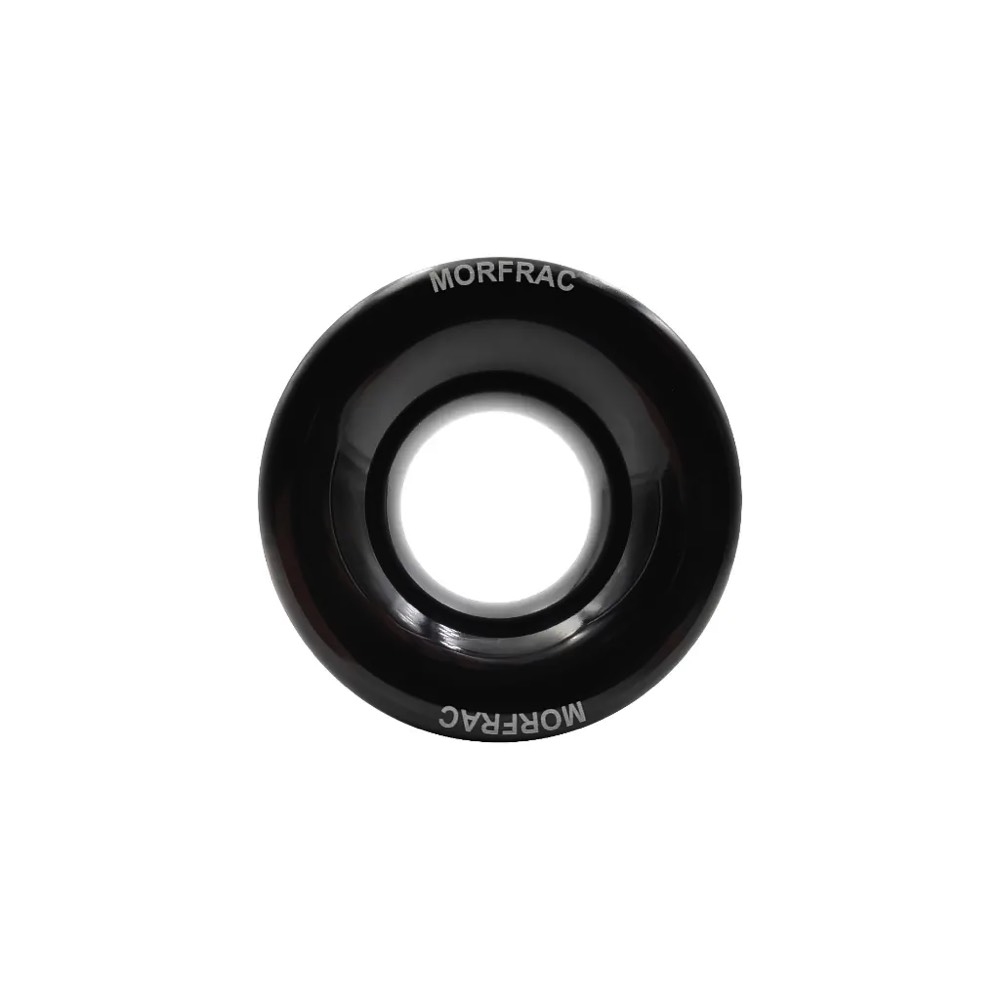

MORFRAC morfring Ø 15 mm – Low Friction Ring
Small in size, big on performance. The MORFRAC morfring Ø 15 mm is the smallest in Morfrac’s range of precision-engineered low friction rings, designed to provide a lightweight, highly efficient solution for small-diameter control lines, backstay adjusters, or cascade systems.
Machined from high-grade aluminium and finished with Morfrac’s signature hard anodising, this ring delivers a remarkably smooth, low-friction surface—perfect for reducing wear on lines while maintaining compact and reliable rigging setups.
Key Features:
- High-Grade Hard Anodised Finish: Provides exceptional surface hardness and ultra-smooth line contact, minimising friction and preventing rope abrasion.
- Compact and Lightweight: With an outer diameter of just 15 mm, this is an ideal friction solution where space and weight are critical—such as dinghies, control lines, or inboard setups.
- Rope Compatibility: Optimised for lines up to 4mm in diameter.
- Safe Working Load: Rated for up to 250 kg, suitable for a wide variety of light-load static and dynamic rigging functions.
- Versatile Applications: Perfect for purchase systems, barber haulers, low-profile deflectors, or soft eye terminations in lightweight setups.
- Corrosion-Resistant: The hard anodised coating not only improves friction characteristics but also provides excellent long-term protection in harsh marine environments.
The morfing Ø 15 mm is a simple, elegant solution for sailors seeking maximum efficiency in a minimalist format—ideal for both high-performance dinghies and control systems on larger yachts.
Spécifications
| Largeur totale (mm) | 7 |
| Cordage recommandé – Ø Max (mm) | 4 |
| Ø Intérieur (mm) | 6 |
| Ø Extérieur (mm) | 15 |
| Ø cordage max surface extérieur de l'anneau (mm) | 4 |
| Charge de travail (kg) | 250 |
| Charge de rupture (kg) | 500 |
| A (mm) | 15 |
| B (mm) | 6 |
| C (mm) | 7 |
| Poids (g) | 1 |
