Specifications for MORFRAC morfblock.[WOOD] 10 XL - Wood and Titanium friction block
| Bearing type | Plain bearing |
| Cordage recommandé – Ø Max (mm) | 24 |
| Ø réas (mm) | 100 |
| Charge de travail (kg) | 10000 |
| A (mm) | 195 |
| B (mm) | 105 |
| C (mm) | 78 |
| Poids (g) | 577 |

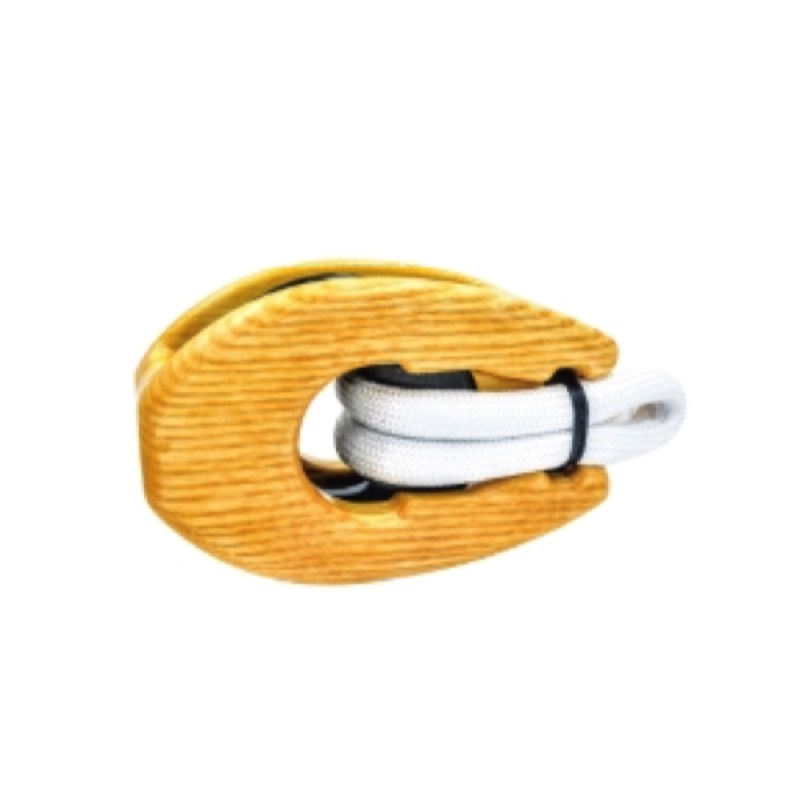

MORFRAC morfblock.[WOOD] 10 XL – Wood and Titanium Friction Block
Where tradition meets innovation. The MORFRAC morfblock.[WOOD] 10 XL is a striking fusion of nautical heritage and cutting-edge performance, delivering a friction block unlike any other. Crafted from solid marine-grade wood and aerospace-grade titanium, this XL version of the morfblock combines artisan aesthetics with uncompromising functionality.
Designed for sailors who value both performance and timeless design, the morfblock.[WOOD] 10 XL offers exceptionally low-friction line handling without the moving parts of traditional pulleys. It is ideal for high-load, static, or semi-static applications such as backstays, halyard deflectors, or inboard barber haulers—minimising complexity while maximising reliability.
Key Features:
- Premium Materials: Machined titanium cheeks for an exceptional strength-to-weight ratio, paired with a handcrafted solid wood centre—sealed and protected for long-term marine use.
- Efficient by Design: Static friction surface engineered to reduce wear and energy loss, optimising line handling in high-load scenarios.
- High Load Capacity: Rated for working loads up to 10 tonnes, making it suitable for demanding applications on larger yachts.
- Large Line Compatibility: Designed to accommodate rope diameters of up to 24mm, ideal for heavy-duty rigging configurations.
- Low Maintenance: With no moving parts, the morfblock is immune to bearing wear or corrosion, offering long-term reliability with minimal upkeep.
- Distinctive Aesthetic: The natural wood grain provides a timeless, elegant finish—perfect for both modern and classic yacht designs.
Whether you're retrofitting a modern rig with understated style or enhancing a traditional yacht with modern mechanics, the morfblock.[WOOD] 10 XL embodies Morfrac’s philosophy of minimalist excellence.
Spécifications
| Bearing type | Plain bearing |
| Cordage recommandé – Ø Max (mm) | 24 |
| Ø réas (mm) | 100 |
| Charge de travail (kg) | 10000 |
| A (mm) | 195 |
| B (mm) | 105 |
| C (mm) | 78 |
| Poids (g) | 577 |
