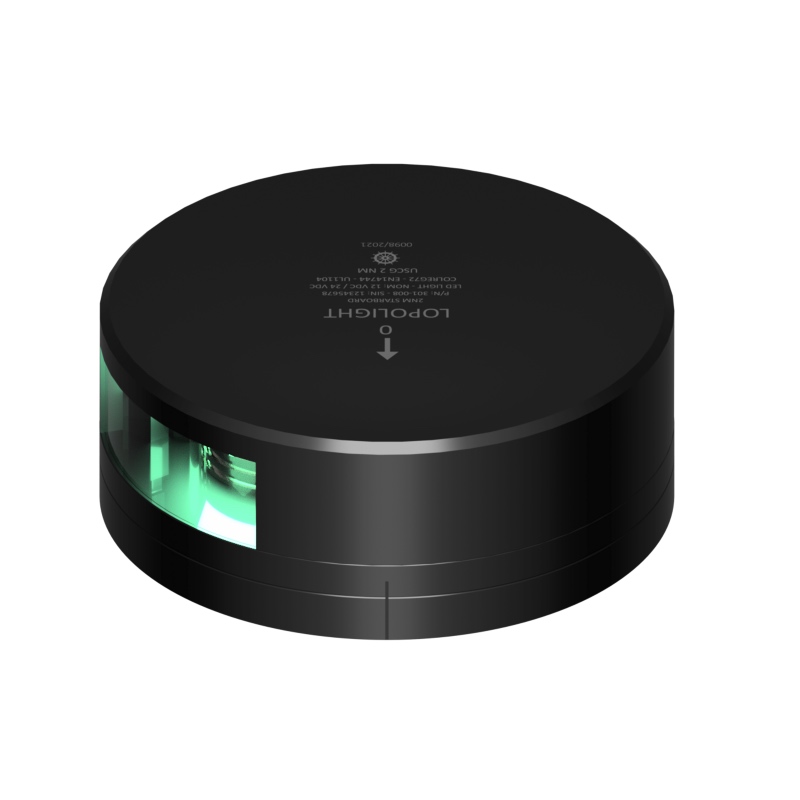

Lopolight 2NM 112.5° Starboard Sidelight – Horizontal Mount, 6m Cable (Silver or Black Anodised)
[For vessels under 20m – LED navigation light]
The Lopolight 2NM Starboard Sidelight with horizontal mount and 6-metre cable is designed for vessels under 20 metres requiring extended cable length for more complex routing or taller structures. It projects a sharp 112.5° green beam visible to 2 nautical miles, ensuring clear, compliant starboard-side visibility.
Made from anodised aluminium, this light is available in Silver or Black finishes. Its horizontal mounting base is ideal for installation on decks, cabin sides, or coamings. Rated IP68, the housing and epoxy-sealed electronics offer reliable resistance to saltwater, vibration, and UV exposure.
The 6-metre marine-grade cable gives added flexibility for extended wiring runs or retrofit installations.
Key Features:
- Suitable for vessels under 20 metres
- 112.5° green beam, visible to 2NM
- Horizontal mount – suited for deck, coaming, or cabin installation
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine reliability
- Supplied with 6m marine-grade cable for extended cable routing
- Low power draw – ~2 W at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
- Alternative version available with 2.5m cable connection
Spezifikationen
| Boat size (m) | 20-50M oder 12-20M oder Under 12M |
| Farbe | Silber oder Schwarz |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane oder Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 6m cable |
| Dimensions (mm) | Ø92,5mm x 36mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 110 |
| Current draw (mA @ 24VDC) | 60 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Sichtweite (NM) | 2 |
| Leistung (W) | 1.4 |
| Spannung unter Betrieb | 10-32 |
| Garantie (Jahren) | 5 year limited warranty |
| Wasserdichtigkeit | IP68 |
| Gewicht (g) | 710 |
